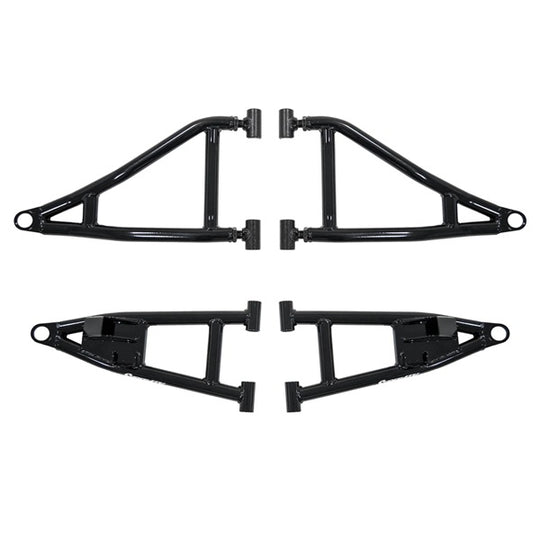

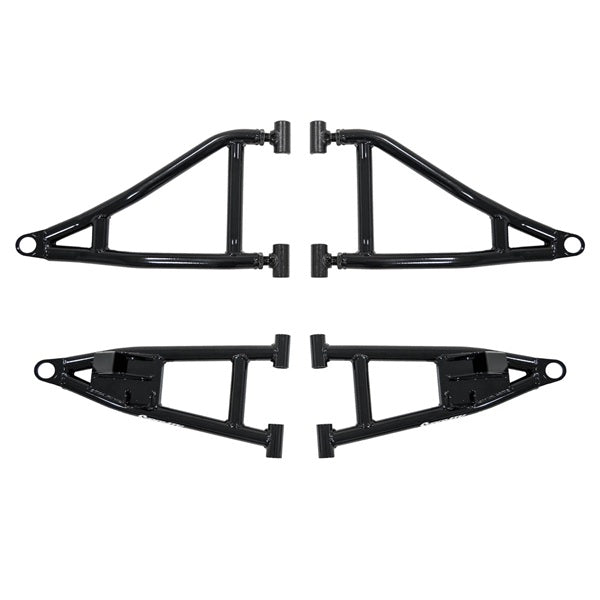

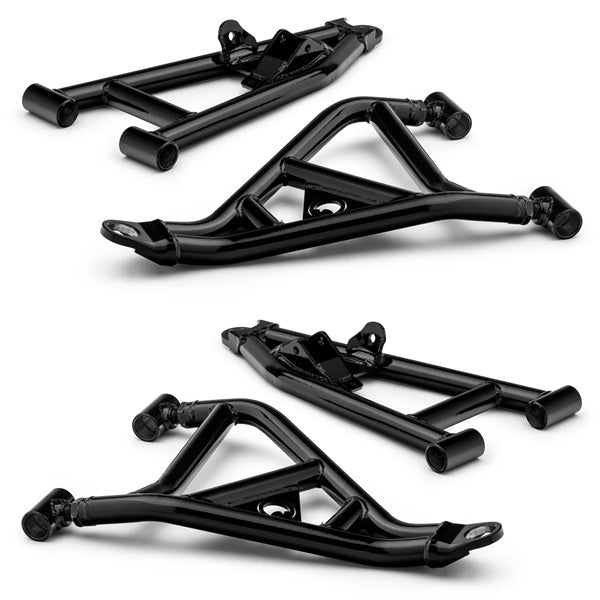

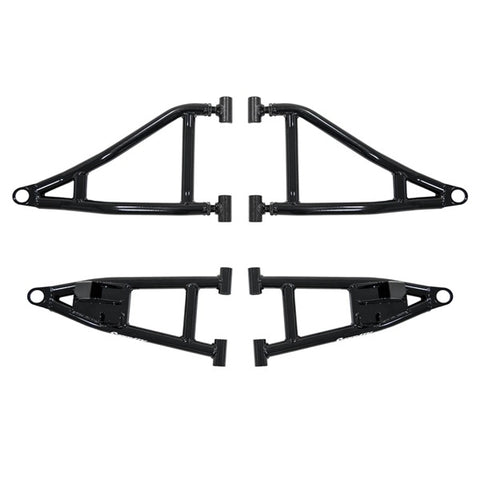

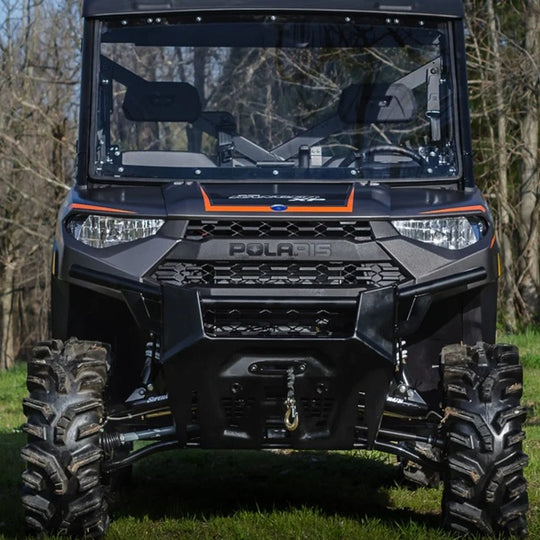

SuperATV high-clearance front A-arms give your Polaris Ranger 1000 a 1.5-inch forward offset and an arched design for 1.5 inches of additional clearance without a lift. The forward offset extends the wheelbase for added stability and provides room for tires up to 28.5 inches, subject to clearance limitations. Choose the correct Single Bench or Crew Cab model, model-year range, and ball-joint option before ordering.
Features and specifications
- Placement: front suspension control arms.
- Forward offset: 1.5 inches.
- Additional clearance from the arched arm design: 1.5 inches without a lift.
- Tubing: 1.25 inches in diameter, 25% larger than stock.
- Adjustable upper pivot blocks for camber adjustment.
- UV-resistant powder-coat finish.
- Installation hardware, instructions, and steering stop included.
- Backed by SuperATV's lifetime warranty.
Choose your model and ball-joint option
- Single Bench: 2020 or 2021+.
- Crew Cab: 2020 or 2021+.
- Ball-joint choices: No Ball Joints, pre-installed Heavy Duty 4340, or pre-installed Super Duty 300M.
The No Ball Joints option does not include ball joints. Select a pre-installed option if you want ball joints supplied with the arms. Tires and wheels are not included.
Polaris Ranger 1000 fitment
Match the vehicle's model, year, and configuration to the available selector.
- Ranger 1000 and Ranger 1000 Crew: 2020+
Tire clearance and installation

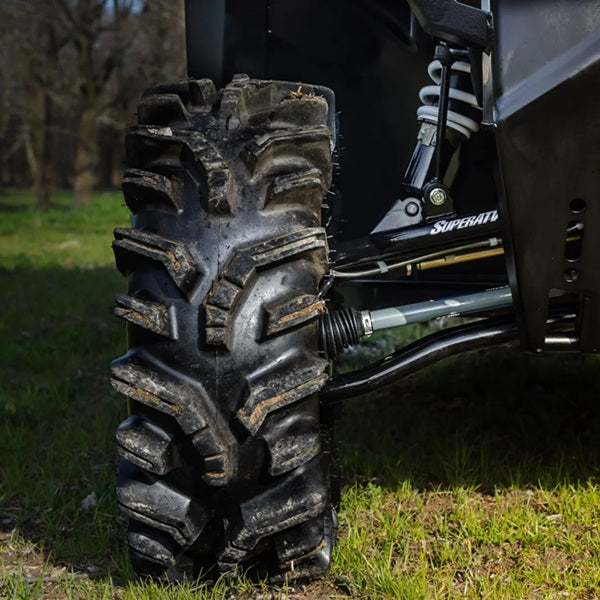

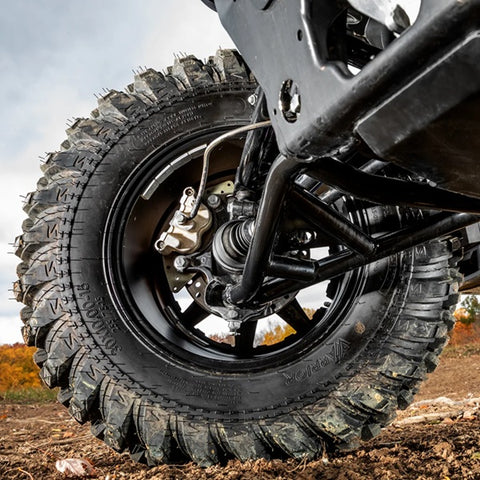

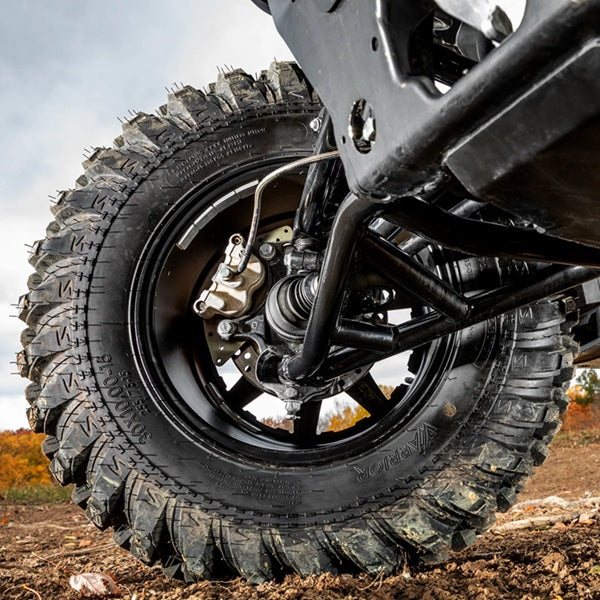

These arms provide clearance for tires up to 28.5 inches. At full suspension compression, a 28.5-inch tire may rub the trim and bumper on some machines. Check clearance throughout suspension travel and steering movement; the stated tire size is not a guarantee of rub-free fitment.

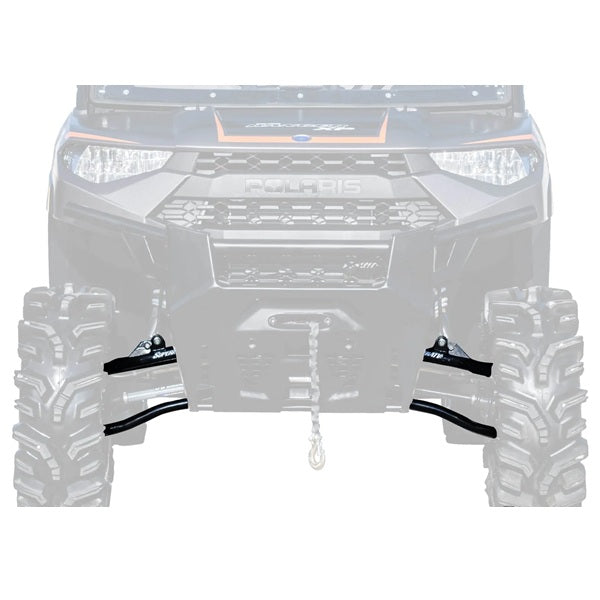

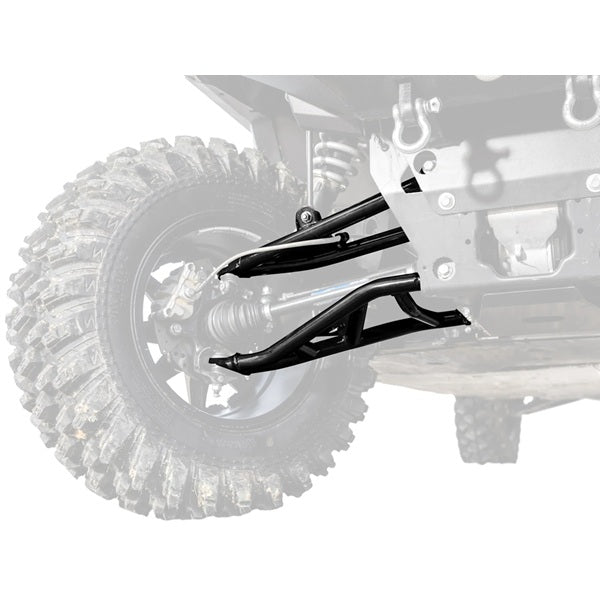

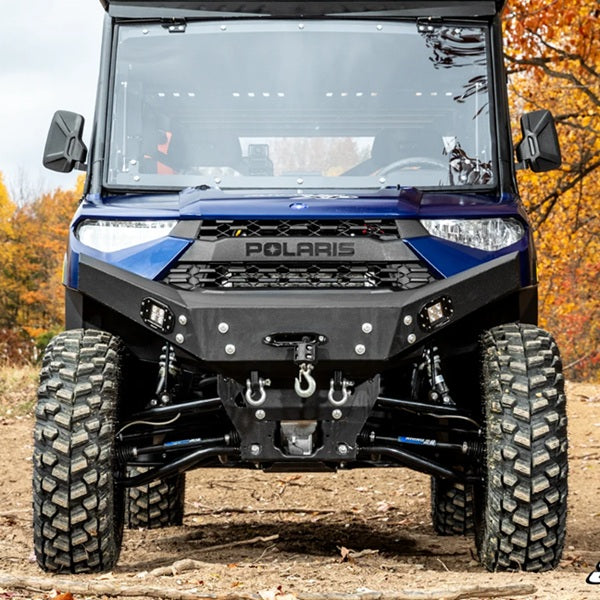

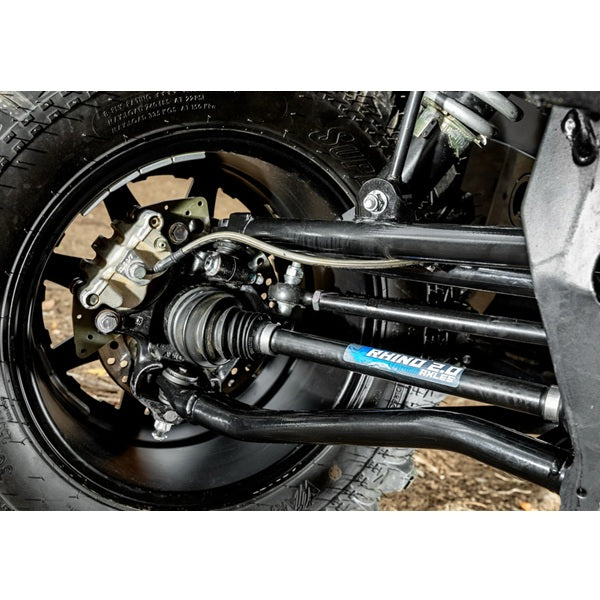

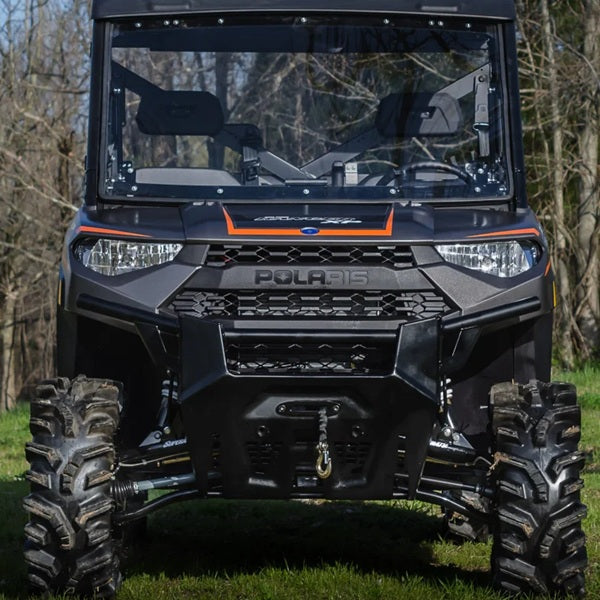

The arched arms increase clearance beneath the arms without requiring a lift. The forward offset moves the front wheels forward, extending the wheelbase to help with stability when navigating hills and obstacles.
Confirm that the instructions match your selected kit before installation.
Frequently asked questions
What does the 1.5-inch forward offset do?
It moves the front wheels forward by 1.5 inches, extending the wheelbase for added stability and creating room for larger tires.
What size tires can I use?
The listed maximum is 28.5 inches. At full compression, tires of that size may rub the trim or bumper on some machines, so check clearance before use.
Do these A-arms require a lift?
No lift is required to obtain the listed 1.5 inches of additional clearance from the arched arm design.
Are ball joints included?
Only when you select a pre-installed ball-joint option: Heavy Duty 4340 or Super Duty 300M. The No Ball Joints option excludes ball joints.
Can I adjust camber?
Yes. The adjustable upper pivot blocks provide camber adjustment.
Are tires or wheels included?
No. This listing is for the front A-arms with the selected ball-joint configuration, installation hardware, and steering stop. Wheels and tires are sold separately.
