SuperATV Can-Am Defender HD9 Factory Cab 6" Lift Kit (2022+)

SuperATV SKU: LK-CA-DEF-6-004-02#AG
Regular price


Add Preinstalled Ball Joints?
Ready to ship - 10 left

The SuperATV 6" Lift Kit for the Can-Am Defender HD9 Factory Cab Model gives your Defender 17 inches of clearance, room for 34” tire and more stability. With chromoly steel A arms. SuperATV has taken the traditional and made it EXCEPTIONAL. The Defender wants to work hard and play harder with this 6” Lift Kit, there’s no mud hole you can’t conquer.

Store Sale! A 10% discount will automatically be taken off this product at Checkout.

Defender HD 9 with Factory Cab : 2022+

NOTE: Does NOT fit any other HD9 models

Click Here for Instructions

17" of ground clearance (up from 11" stock)
Run up to 34” tires (up from 27” stock)
Preadjusted pivot blocks give you perfect camber out of the box
Includes 4 bulletproof Rhino 2.0 axles
Lifetime Warranty on all A-arms and brackets
The ONLY chromoly lift kit for the Defender
Chromoly ball joint housings
Chromoly pivot blocks
Chromoly A-arms from end to end!
True 6” of lift
7” wider stance for increased stability (69" wide total)
Compatible with OEM and SuperATV heavy-duty ball joints
Powder coated for increased durability

NOTE: This 6" Lift Kit disables the front and rear sway bars.

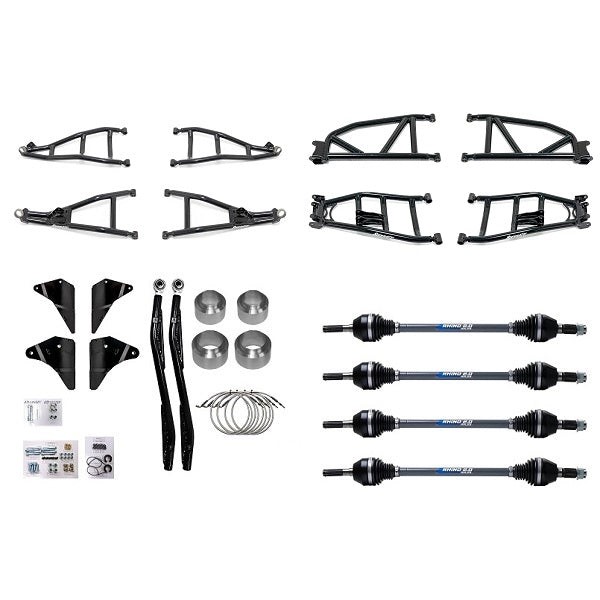

Front and rear lift brackets
Front and rear spring spacers
Front and Rear A arms
4 Rhino 2.0 axles
Heavy duty tie rod kit
Extended brake lines
All hardware and installation instructions

Rhino 2.0 Features:
100% stronger than stock
Utilizes the Rhino 2.0 Formula
Size: Massive 4mm increase in size!
Heat Treatment
Constructed of 4340 chromoly steel and finished with a proprietary heat treatment
Industry leading 18-month warranty
Field and lab tested for extreme strength and endurance
CAD drawn for expert precision

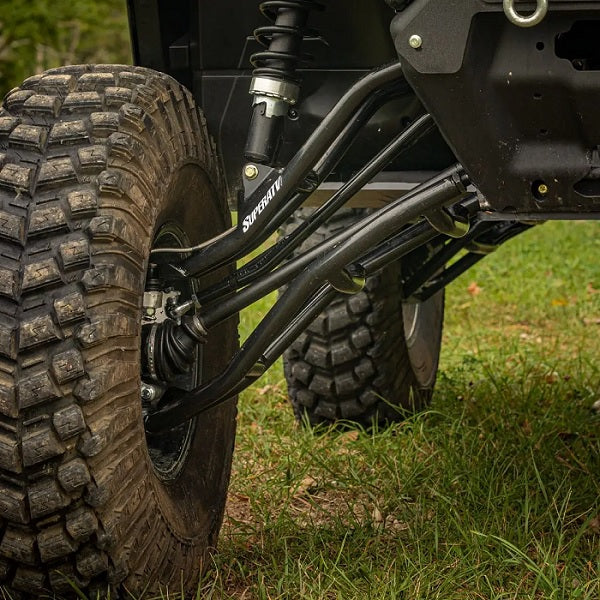

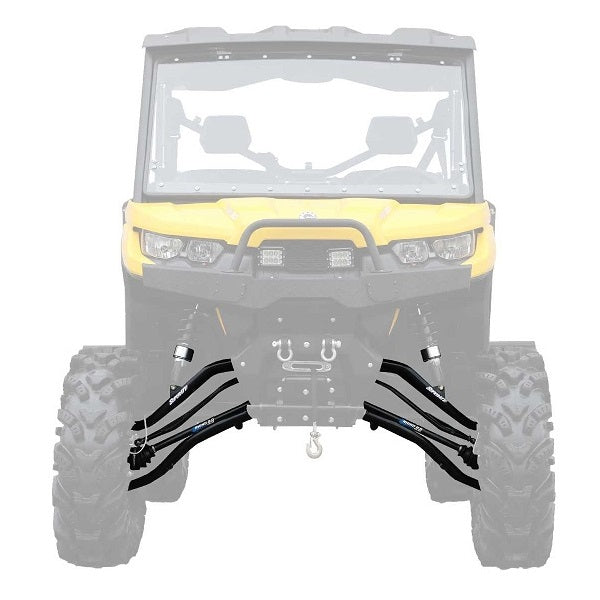

Chromoly A Arms Raise the Bar
The A arms on this lift kit are made of chromoly steel from end to end. The pivot blocks that bolt to the frame are chromoly, the 1.25” diameter tubing is chromoly, and the ball joint housings are chromoly. It’s the only chromoly lift kit you can get for a Can-Am Defender. That’s because they wanted to make a true-to-size 6” lift that could tackle any mud hole without buckling. And with 17” of clearance with room enough for 34” tires and 4 ea. Rhino 2.0 axles included; you’ll be riding harder than you ever have before.

Rhino 2.0 takes your UTV and your 6” lift to the next level. With hardened 4340 chromoly from end-to-end and maximized CV components, Rhino 2.0 is twice as strong as stock and can handle 40°+ suspension angles without overheating. Not only that, but they’ve been precision made so they don’t require any break in and come with an 18-month warranty. So take the harder route and blaze a new trail—with Rhino 2.0, you’re indestructible.
