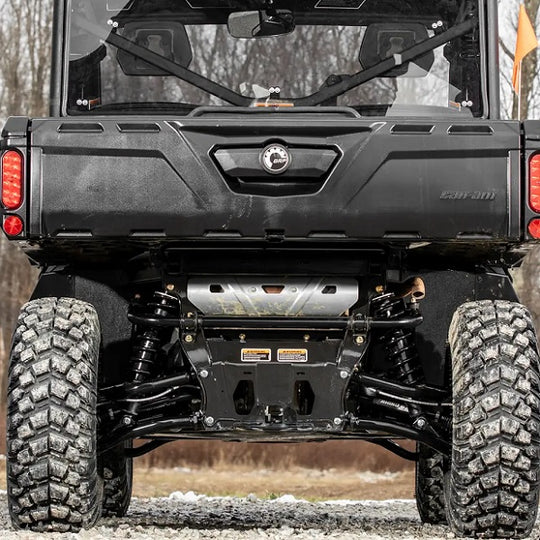

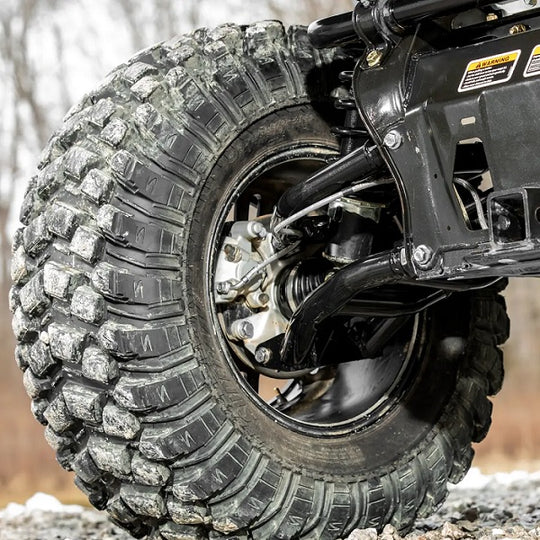

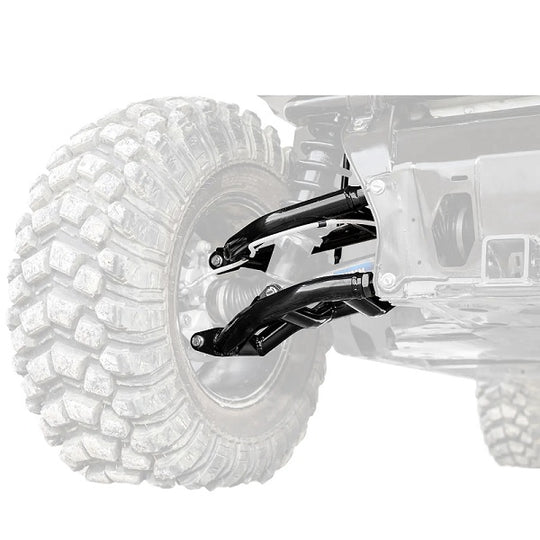

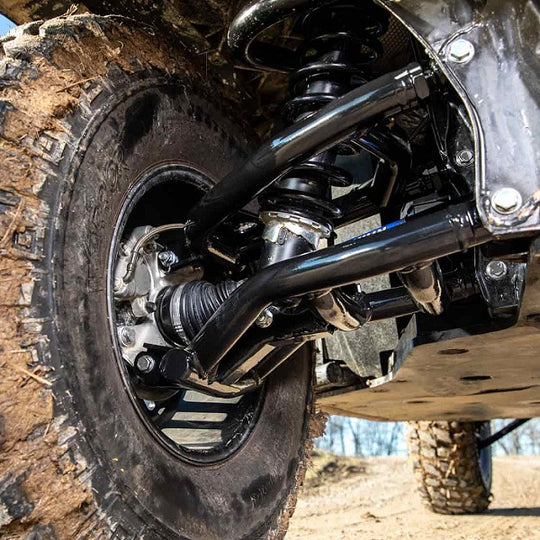

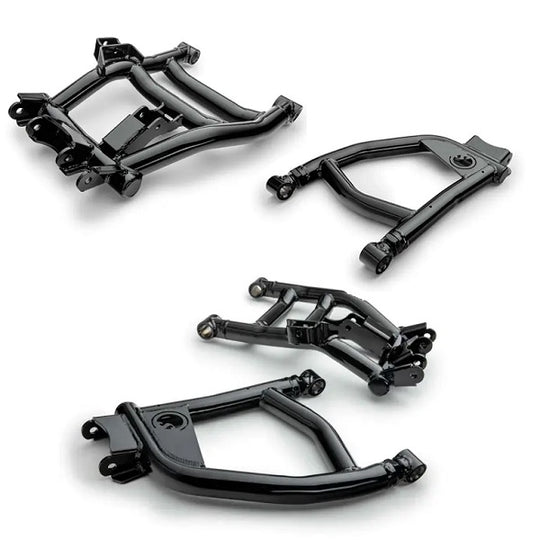

Atlas Pro Can-Am Defender HD10 2" Offset Rear A-Arms

With these SuperATV Atlas Pro 2" Offset Rear A-Arms for Can-Am Defender HD 10 Models do more driving in rough terrain. Atlas Pro Can-Am Defender Offset Rear A-Arms the tubing is bigger and better, measuring 1.5” in diameter. They’re also 0.5” larger than stock and 0.25” larger than SuperATV standard A-Arms for Defender HD10.

Store Wide Sale! Save 5% to 15% at Checkout on 1000's of products.

Fits:
Defender HD 10 : 2016-2019
Defender HD 10 DPS : 2016-2019
Defender HD 10 XT : 2016-2019
Defender HD 10 XTP : 2018-2019
Defender HD 10 XMR : 2018+
Defender HD 10 XT Cab : 2018+
Defender HD 10 Mossy Oak : 2020+
Defender Limited : 2020+
Defender MAX HD 10 DPS : 2017-2019
Defender MAX HD 10 XT : 2017-2019
Defender MAX HD 10 XT Cab : 2018+
Defender MAX HD 10 XMR : 2019+
Defender MAX Lone Star Edition : 2018+
Defender MAX Limited : 2020+

Click Here for 002 Instructions

Click Here for 003 Instructions

FEATURES
Adds 2” of rear offset
Fit up to 32” tires
Made with 1.5” diameter tubing
0.5” larger than stock
0.25” larger than our standard High-Clearance 1.5” Rear Offset A-Arms
Adjustable pivot blocks for full camber adjustability
Utilizes stock A-arm bushings
UV-resistant powder coat finish
Easy to install
Backed by a lifetime warranty

These Atlas Pro A-Arms are large and beefy, the biggest A-Arms we have ever designed. The enlarged 1.5” diameter tubing will turn heads. And while you’re on the trail, it gives you the strength you need and the reliability you count on. Half an inch bigger than stock may not sound big, but the difference is huge when it comes to A-arms. Plus, we finish them with a UV-resistant powder coating to increase durability and corrosion resistance.

The design of these Can-Am Defender HD10 control arms gives you an additional 1.5" of ground clearance, allowing you to ride over stumps and rocks you’d pass up in the past. And they come with a 2” rear offset, adding length to your wheelbase by moving the ball joint 2" backward. The offset allows you to run up to 32” tires without adding a lift kit. The trail is at your mercy with larger tires, more ground clearance, and a 2” offset.

Our high-clearance A-arms also come with adjustable pivot blocks, giving you the ability to change your camber. It’s important when adding a lift kit or larger tires that you pay attention to your camber to eliminate premature wear and tear on your tires. To keep the stress off you, we’ve also pre-adjusted your pivot blocks to match your machine's stock specifications, so you don’t have to mess with them if you don’t want to.
