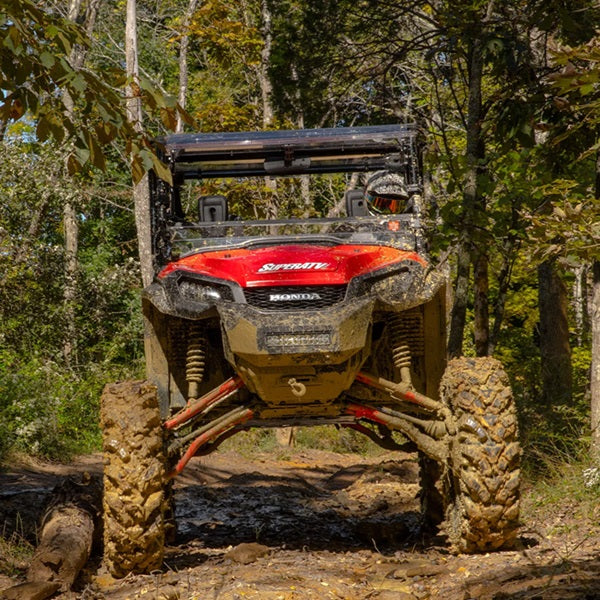

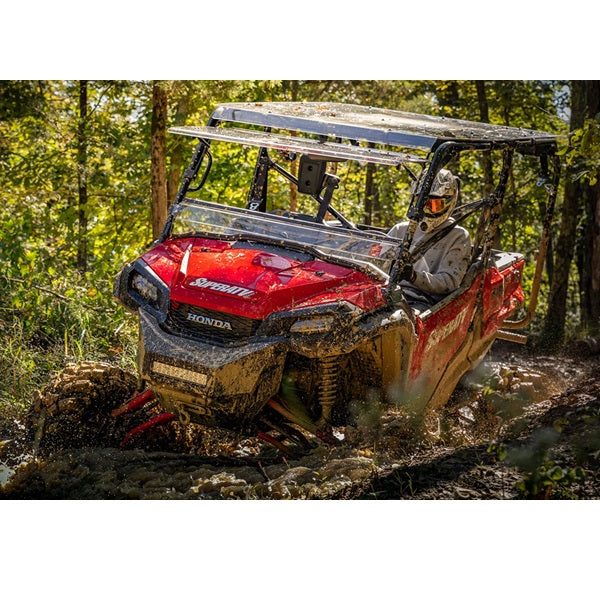

The SuperATV 6-inch lift kit gives compatible 2016–2025 Honda Pioneer 1000 and Pioneer 1000-5 models additional ground clearance and room for larger tires. High-clearance A-arms, four Rhino 2.0 axles, extended steering components, and extended brake lines support the lifted suspension. Select the kit for your exact model year and trim before ordering.
Fitment and tire clearance
- Honda Pioneer 1000 and Pioneer 1000-5, including Deluxe: 2016–2025.
- Honda Pioneer 1000 and Pioneer 1000-5 Limited Edition: 2022–2025.
- Honda Pioneer 1000 and Pioneer 1000-5 Forest Edition: 2023–2025.
- Does not fit Trail models.
- 2016–2021 kits accommodate tires up to 31 inches.
- 2022–2025 kits accommodate tires up to 35 inches.
- A 1-inch wheel spacer is required when using 12-inch wheels.
Model-year selections are Standard or Deluxe 2016–2021, Standard or Deluxe 2022–2025, and Limited or Forest 2022–2025. The combined Limited or Forest selection does not extend Forest Edition fitment to 2022.
Features and suspension benefits
- Full 6 inches of lift with dual-bend, high-clearance A-arms for additional clearance through mud, rocks, and uneven terrain.
- Listed ground clearance: 17-1/2 inches at the front and 17-3/4 inches at the rear.
- Extended suspension components and a wider track width support the taller stance.
- High-strength, CNC laser-cut and brake-press-bent steel lift brackets.
- Designed to maintain a good steering radius and suspension travel.
- Fully adjustable camber with pivot blocks preadjusted to stock specifications.
Model-specific A-arms
2016–2021 kits use hand-welded, 1.25-inch-diameter chromoly A-arms with tubing 25% larger than stock. The 2022–2025 kits use Atlas Pro A-arms with 1.5-inch (38 mm) steel tubing. These model-specific designs provide strength and clearance for the lifted suspension.
Track bars for 2022–2025 kits
The newer kits include track bars with thick steel tubing, heavy-duty heims, and SuperATV Double Axis Tech. They reinforce the suspension under the loads of larger tires and accessories while allowing full suspension travel without binding. The track bars bolt on without welding and are designed to preserve ground clearance.
Four included Rhino 2.0 axles
Both model-year kit groups include four SuperATV Rhino 2.0 axles, not a separate axle upgrade selection. These axles use end-to-end 4340 chromoly and maximized CV joints. SuperATV rates them at twice the strength of stock and for suspension angles over 40 degrees without overheating. They require no break-in period and carry an 18-month warranty.
What is included?
2016–2021 kit contents
- Front and rear lift brackets.
- Four SuperATV Rhino 2.0 axles.
- Front and rear A-arms.
- UHMW A-arm bushings.
- Extended Z-bend tie rods, heavy-duty tie rod ends, and inner ball and socket.
- Extended brake lines.
- All necessary hardware and instructions.
2022–2025 kit contents
- Front and rear lift brackets.
- Four SuperATV Rhino 2.0 axles.
- Front and rear Atlas Pro A-arms.
- Track bars.
- UHMW A-arm bushings.
- Extended Z-bend tie rods, heavy-duty tie rod ends, and inner ball and socket.
- Extended brake lines.
- All necessary hardware and instructions.
Choose your ball joint option
Select No Ball Joints, Heavy Duty 4340, or Keller Performance. Preinstalled ball joints reduce assembly work. If you select No Ball Joints, you must reuse your stock ball joints.
Heavy Duty 4340 ball joints
These ball joints use zinc-plated 4340 VAR steel, adjustable construction, and accessible grease zerks for maintenance. SuperATV rates them to withstand twice the force of stock ball joints.
Keller Performance ball joints
Keller ball joints use a two-piece threaded design instead of a snap ring, with a chromoly steel stud and tool-steel body. Their greaseable, rebuildable construction is suited to larger machines and tires.
Installation and warranty
Installation is a full suspension project requiring mechanical experience. Review the instructions for your exact kit before starting and confirm the wheel-spacer requirement if running 12-inch wheels.
View 2016-21 lift kit PDF instructions
View 2012-25 lift kit PDF instructions
The lift brackets, A-arms, and tie rods are backed by a lifetime warranty. Rhino 2.0 axles have separate 18-month warranty coverage.
Frequently asked questions
Which Honda Pioneer models does this 6-inch lift kit fit?
It fits the listed 2016–2025 Pioneer 1000 and 1000-5 Standard and Deluxe models, 2022–2025 Limited Edition models, and 2023–2025 Forest Edition models. It does not fit Trail models. Choose the matching model-year and trim option.
What size tires can I run?
The listed maximum is 31 inches for 2016–2021 models and 35 inches for 2022–2025 models. The limits differ by kit generation; do not apply the newer kit's tire limit to the older kit.
Are Rhino 2.0 axles included?
Yes. Four SuperATV Rhino 2.0 axles are included in both the 2016–2021 and 2022–2025 kit contents.
Are ball joints included?
Only when you choose the Heavy Duty 4340 or Keller Performance ball joint option. The No Ball Joints selection requires you to reuse your stock ball joints.
Do I need wheel spacers with 12-inch wheels?
Yes. A 1-inch wheel spacer is required to run 12-inch wheels with this kit.
Can I adjust camber after installing the lift?
Yes. The A-arms provide full camber adjustability through adjustable pivot blocks, which arrive preadjusted to stock specifications.
Which parts have lifetime warranty coverage?
The brackets, A-arms, and tie rods have lifetime warranty coverage. The included Rhino 2.0 axles have an 18-month warranty.
