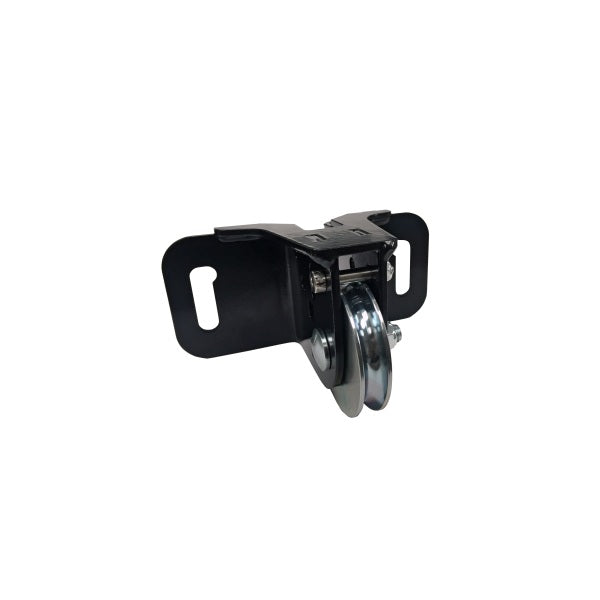

The KFI 105270 standard winch plow roller replaces your standard winch fairlead during plow season to help steel cable move more smoothly, reduce wear, and extend cable life. It fits standard winches with a 4.875-inch (4-7/8-inch) fairlead bolt pattern.
For steel cable only. This roller mounts at the winch fairlead, not on the plow push tubes.
Features and Benefits
- The large 2-1/8-inch-diameter roller provides smoother cable travel than standard 7/8-inch rollers during repeated plow lifts.
- A curved cable groove helps reduce cable flattening, which can lead to snapped steel cables.
- The larger roller helps reduce kinking caused by small roller contact and severe pulling angles.
- Multiple roller mounting positions accommodate different winch heights, applications, and cable angles.
- Designed to improve lift efficiency and reduce cable strain during repeated plow cycles.
Specifications and Fitment
- Brand: KFI Products.
- Part number: 105270.
- Application: Standard winch-mounted plow roller for steel cable.
- Fairlead bolt pattern: 4.875 inches (4-7/8 inches).
- Roller diameter: 2-1/8 inches.
- Mounting location: At the winch fairlead only.
Confirm your fairlead bolt spacing and mounting arrangement before ordering. For a wide winch with a 6.00-inch bolt pattern, see KFI part #105465 instead.
Winch Roller vs. Push-Tube Pulley
This listing is for the winch-mounted roller, not the KFI 106680 Quick Pulley. Although this roller was previously used as a pulley option on KFI UTV push-tube systems, that application has been replaced. The current steel-cable push-tube solution is the KFI Quick Pulley, part #106680. Push-tube pulleys are required only when the model-specific KFI application chart calls for them.
When plowing with a steel-cable winch, KFI recommends a roller or pulley at the winch to reduce cable strain.
Installation and Soft Strap Option

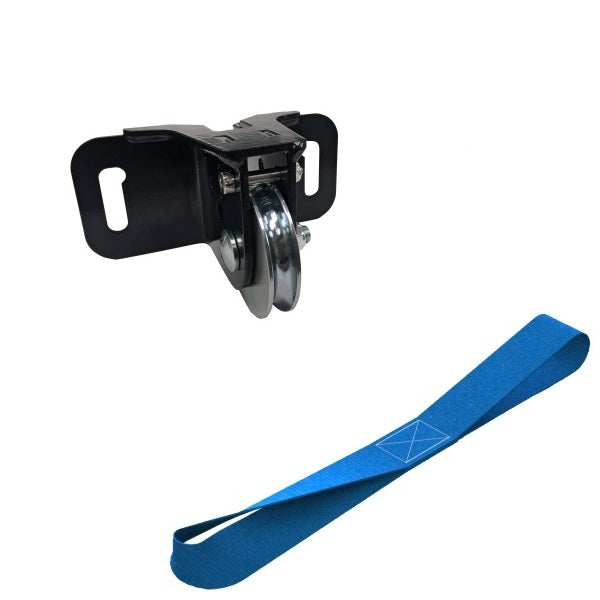

A 12-inch soft strap, KFI #106470, is recommended for attaching the winch hook back to the machine during plowing. Choose the Add Strap option if you want to add a soft strap, or No Strap if you do not. Review the installation instructions and confirm the mounting arrangement for your setup before installation.
KFI #105270 installation instructions
Frequently Asked Questions
Will this roller fit a standard winch?
It fits standard winches with a 4.875-inch (4-7/8-inch) fairlead bolt pattern. Verify the bolt spacing and mounting arrangement on your winch before ordering.
Can this roller be used with synthetic winch rope?
No. This roller is for steel cable only.
Does this roller mount on the plow push tubes?
No. This roller is intended for winch-mounted use only. For a steel-cable push-tube pulley, refer to KFI #106680 and the model-specific KFI application chart.
Will this fit a wide winch with a 6-inch bolt pattern?
No. For a 6.00-inch fairlead bolt pattern, refer to KFI #105465.
Important Warnings
All products on our site come with a P65 Warning. Cancer and Reproductive Harm Warning - www.P65Warnings.ca.gov
Customer and/or user is responsible and assumes all responsibility for ensuring that the product ordered is compatible with their machine as currently configured, is properly installed, and understands any impact this product has or might have on the machine's operation and performance.
