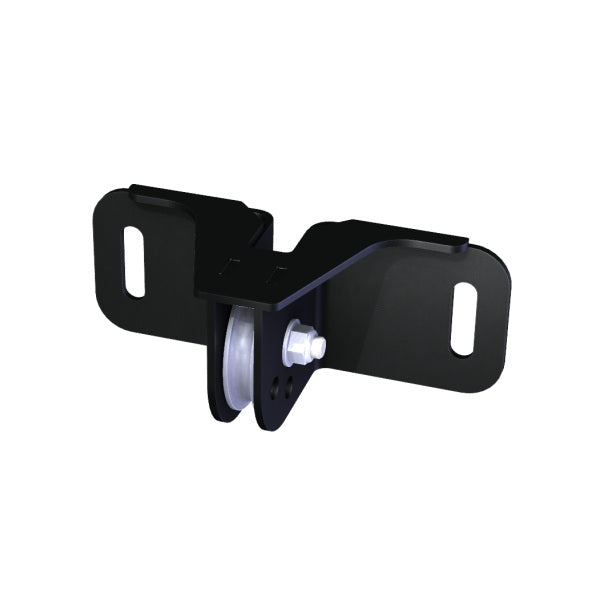

The KFI 105465 wide winch plow roller replaces the winch fairlead during plow season to provide smoother steel cable travel and help reduce cable wear. It fits wide winches with a 6.00-inch fairlead bolt pattern and mounts at the winch only, not on plow push tubes.
For steel cable use only.
Features and Benefits
- The large 2-1/8-inch diameter roller provides smoother cable movement when plowing compared with standard 7/8-inch rollers.
- A curved cable groove helps reduce cable flattening that can lead to snapped steel cables.
- The larger roller helps prevent cable kinking caused by small roller contact and severe pulling angles.
- Multiple roller positions accommodate different winch heights, applications, and cable angles.
- Smoother cable travel helps improve lift efficiency, reduce strain during repeated plow cycles, and extend cable life.
Specifications and Fitment
- Brand: KFI Products.
- Part number: 105465.
- Application: wide winch fairlead plow roller for steel cable.
- Fairlead mounting bolt pattern: 6.00 inches.
- Roller diameter: 2-1/8 inches.
- Mounting location: winch fairlead only.
Confirm your fairlead bolt spacing and mounting arrangement before ordering. For standard winches with a 4.875-inch bolt pattern, see KFI #105270 instead.
Winch Mounting vs. Push-Tube Pulleys
KFI recommends using a roller or pulley at the winch when plowing with steel cable to reduce cable strain. This roller replaces the standard winch fairlead during plow season and is not intended for push-tube mounting.
This roller was previously used as a pulley option on KFI UTV push-tube systems, but that application has been replaced by the KFI Quick Pulley for steel cable, part #106680. Push-tube pulleys are required only when specified by the model-specific KFI application chart.

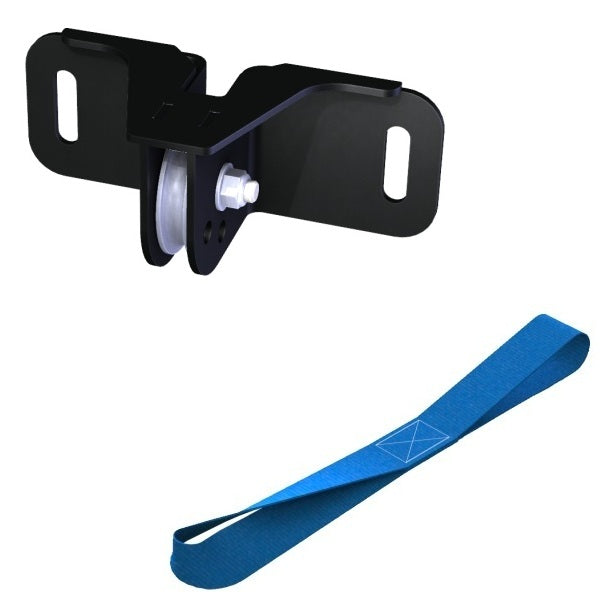

Installation and Soft Strap Option
A 12-inch soft strap, KFI #106470, is recommended for attaching the winch hook back to the machine during plowing. Choose Add Strap to add a soft strap, or No Strap if you do not need one. Review the installation instructions and confirm the mounting arrangement for your setup before installation.
KFI #105465 installation instructions
Frequently Asked Questions
Does the KFI 105465 fit standard winches?
No. This wide roller fits a 6.00-inch fairlead bolt pattern. The standard 4.875-inch version is KFI #105270.
Is this roller intended for synthetic winch rope?
No. This product is for steel cable use only.
Can this roller mount to plow push tubes?
No. It is intended for winch-mounted use only. For steel-cable push-tube pulley applications, refer to KFI #106680 and the model-specific KFI application chart.
Is the soft strap optional?
Yes. Select Add Strap to include a soft strap, or No Strap to order without it.
