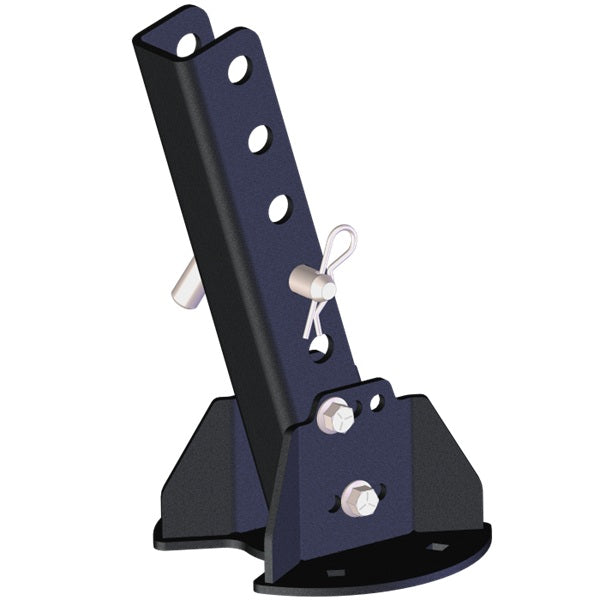

KFI Products UTV Plow Lever Lift

The KFI Products 106045 UTV Plow Lever Lift repositions the plow's lift attachment point to help reduce winch and cable strain caused by low-mounted winches and unfavorable cable angles. Its adjustable lift positions let you set the lifting angle for your plow setup.

Features and specifications

• Adjustable for multiple lifting angles and attachment positions.
• Constructed from heavy-duty 3/16-inch Grade 50 steel.
• Shot blasted before powder coating for surface preparation.
• Finished with a tough black powder coating.
• Mounting hardware included.
• KFI part number: 106045.

Push tube compatibility

Listed for KFI UTV Push Tubes #106300 and #105635. Check your push tube part number before ordering; fitment depends on the plow system, not just the vehicle make or model.

Not compatible with KFI Plow Actuator #105935.

What's included?

The installation instructions list one plow lever lift bracket, one plow lever lift channel, one 5/8-inch hitch pin with clip, and hardware kit HK-155.

Installation

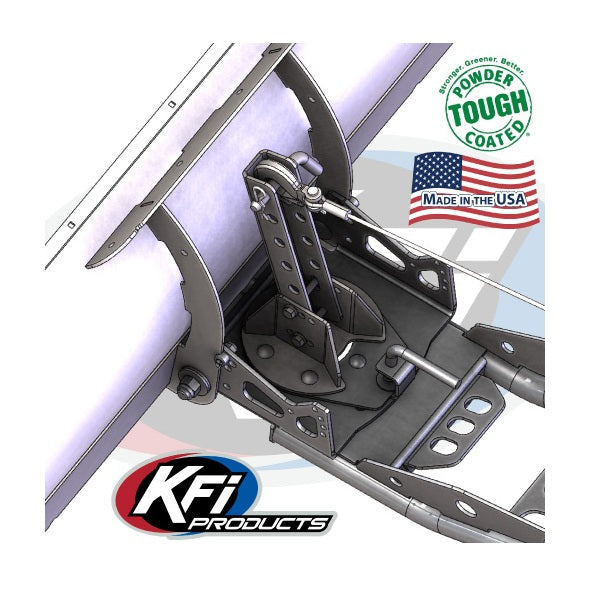

The lever lift mounts using the supplied hardware, and the winch hook attaches to the lift channel. Adjust the lift position for the machine and check clearance with the blade turned fully left and right before use. Follow the KFI 106045 installation instructions for the complete procedure.

Frequently asked questions

What does the KFI 106045 plow lever lift do?

It changes the lift attachment point to help improve the winch cable angle and reduce strain on low-mounted winch setups.

Is the lifting angle adjustable?

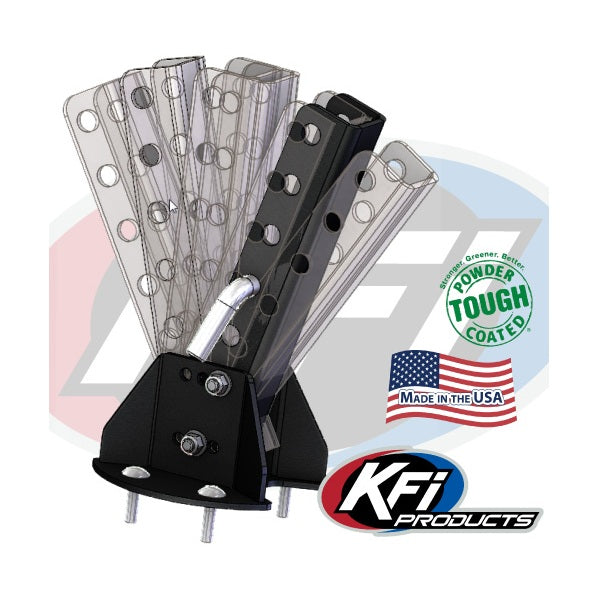

Yes. The lever lift channel and hitch pin provide multiple configurations for adjusting the lifting angle.

Can it be used with plow actuator #105935?

No. This lever lift is not compatible with KFI Plow Actuator #105935.
