KFI #106745 Quick Plow Pulley for Synthetic Winch Cable

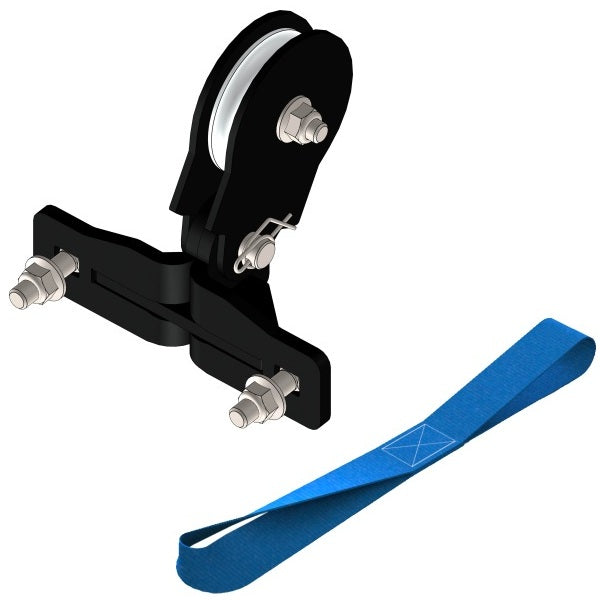

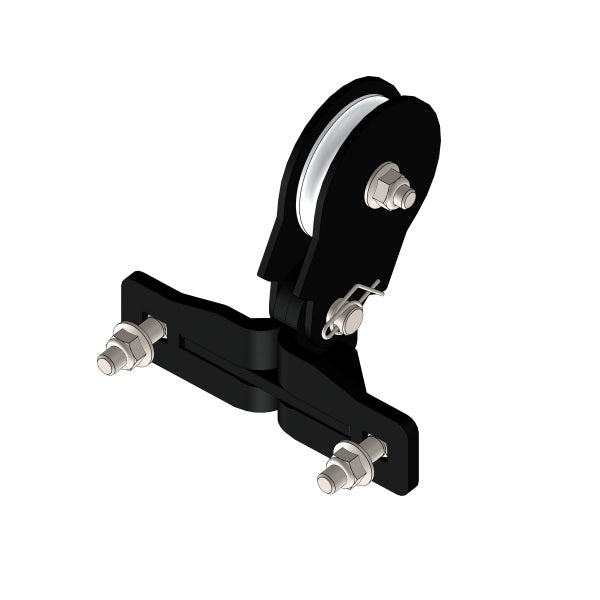

The KFI Quick Plow Pulley #106745 is an easy-on, easy-off cable-attachment pulley for the KFI UTV Plow System. It replaces the standard winch fairlead during plow season to improve blade-lift geometry and manage cable angles. Designed for synthetic winch cable only, it can also slow blade raising for smoother, more controlled lifting.
Features and Benefits
- Multi-position wheel mounting lets you adjust the pulley position for different applications and cable angles.
- Large 2-1/8-inch-diameter wheel provides smoother cable movement than standard 7/8-inch rollers.
- Curved cable groove helps reduce cable flattening that can contribute to premature cable failure.
- Designed to reduce kinking associated with small rollers and abrupt cable-angle changes.
- Stationary wheel design helps prevent pinching of synthetic cable.
- Easy-on, easy-off design for seasonal plow use.
Specifications and Compatibility
- Brand: KFI Products
- Part number: 106745
- Application: KFI UTV Plow System
- Cable type: Synthetic only
- Winch mounting pattern: Standard-size 4.875-inch bolt-up pattern
- Wheel diameter: 2-1/8 inches
- Listed compatible UTV push tubes: #106300, #106310 and #105635

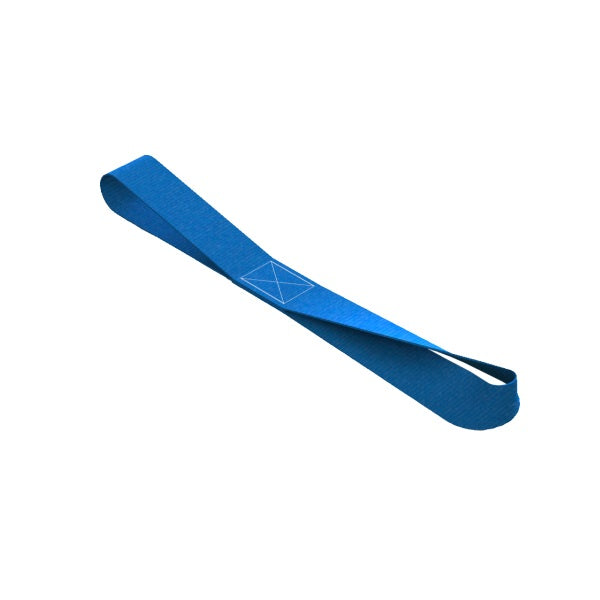

Verify your winch mounting pattern, push-tube part number and cable type before ordering. This is a plow-lift pulley accessory, not a complete snowplow kit. KFI recommends the 12-inch soft strap #106470 to attach the winch hook back to the machine.
Installation Instructions
Review the KFI #106745 installation instructions before installation.
Frequently Asked Questions
Can I use the KFI #106745 pulley with steel winch cable?
No. This pulley is designed for synthetic winch cable only.
What winch mounting pattern does it fit?
It is intended for standard-size winches with a 4.875-inch bolt-up pattern. Check your mounting dimensions before purchasing.
Which KFI UTV push tubes are listed as compatible?
The listed compatible push tubes are KFI #106300, #106310 and #105635. Confirm your exact plow-system configuration using the installation instructions.
Does this replace the standard winch fairlead?
Yes. It replaces the standard winch fairlead during plow season to help manage cable angles when lifting the blade.
Which soft strap does KFI recommend?
KFI recommends the 12-inch soft strap #106470 for attaching the winch hook back to the machine.
Is this a complete snowplow kit?
No. This listing is for the KFI #106745 Quick Plow Pulley accessory, not a complete snowplow system.
