KFI Products Quick Plow Pulley for Steel Winch Cable

KFI #106680 Quick Plow Pulley for Steel Winch Cable

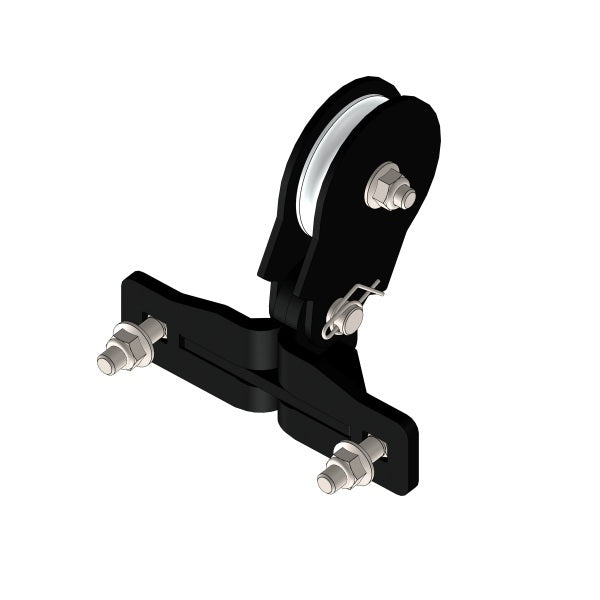

The KFI Products Quick Plow Pulley #106680 is an easy-on, easy-off cable-attachment pulley for the KFI UTV Plow System. It helps improve blade-lift geometry and manage cable angles, and can slow blade raising for smoother, more controlled operation.

For steel winch cable only, not synthetic rope. This version fits standard-size winches with a 4.875-inch bolt-up pattern. It does not fit wide winches with a 6.60-inch bolt-up pattern. Confirm your winch mounting pattern and push-tube part number before ordering.

Features and Benefits

• Replaces the standard winch fairlead during plow season.
• Multi-position wheel mounting lets you adjust for different applications and cable angles.
• Large 2-1/8-inch steel wheel provides smoother cable movement compared with standard 7/8-inch rollers.
• Curved cable groove helps prevent cable flattening that can contribute to premature cable failure.
• Stationary steel wheel helps prevent steel-cable pinching and kinking associated with small roller contact and abrupt angle changes.

Specifications and Compatibility

• Brand: KFI Products
• Part number: 106680
• Cable compatibility: Steel cable only, not synthetic rope
• Winch bolt-up pattern: 4.875 inches
• Steel wheel diameter: 2-1/8 inches
• Compatible KFI UTV push tubes: #106300, #106310 and #105635
• KFI ATV push tubes: #105000 is listed in the fitment information, but this pulley should not be needed for that application.

Wide-winch restriction: Not for a 6.60-inch bolt-up pattern. Compatibility depends on the winch mounting pattern and push-tube assembly, not just the vehicle make or model.

Installation and Setup

A 12-inch soft strap, KFI #106470, is recommended to attach the winch hook back to the machine. Review the instructions before installation and confirm the mounting arrangement for your setup.

KFI #106680 Quick Plow Pulley installation instructions

Frequently Asked Questions

Can I use this plow pulley with synthetic winch rope?

No. KFI #106680 is for steel winch cable only, not synthetic rope.

Which KFI UTV push tubes work with this pulley?

The listed compatible KFI UTV push tubes are #106300, #106310 and #105635. Check the part number on your push-tube assembly before ordering.

Will this version fit a wide winch?

No. This version fits a 4.875-inch bolt-up pattern, not the 6.60-inch pattern used by wide winches.

What does the Quick Plow Pulley do?

It helps manage cable angles and improve lift geometry while raising the plow blade. It can also reduce raising speed for more controlled blade movement.

Is it needed with KFI ATV push tubes #105000?

The fitment information lists #105000 but notes that this pulley should not be needed for that application.

Which strap is recommended for setup?

KFI recommends the 12-inch soft strap #106470 to attach the winch hook back to the machine.
