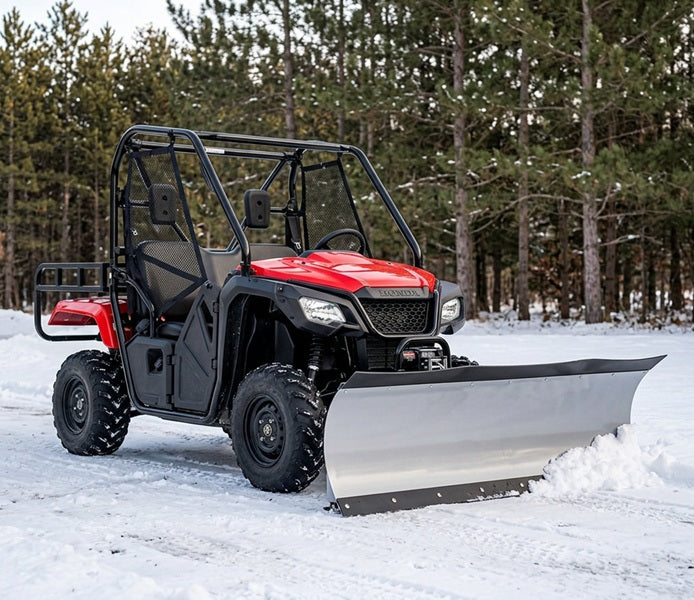

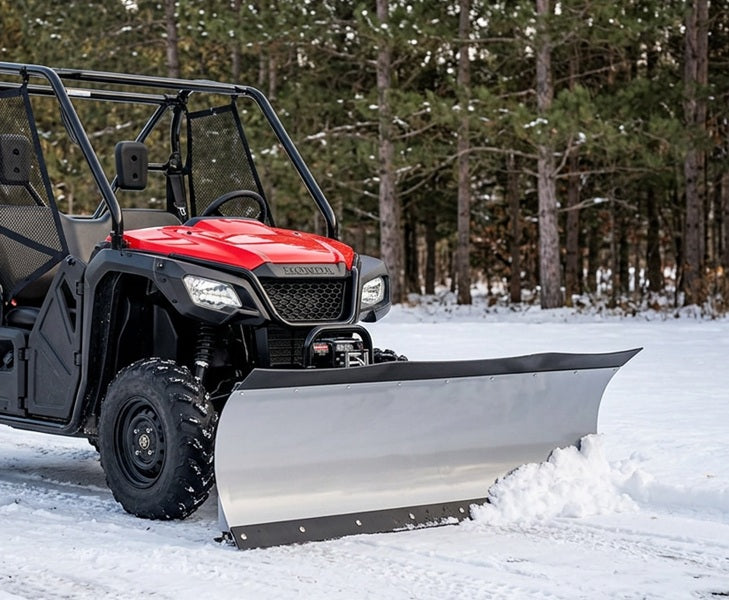

KFI Honda Pioneer 500 Pro S Snowplow Kit - 72 Inch Blade

Clear your driveway and trails with the KFI Products Pro S 72-inch snowplow kit for the 2015-23 Honda Pioneer 500. This kit pairs a metallic-silver steel blade with a front plow mount and Pro 2.0 push tube for winter snow removal.

What’s included

• 72-inch Pro S plow blade

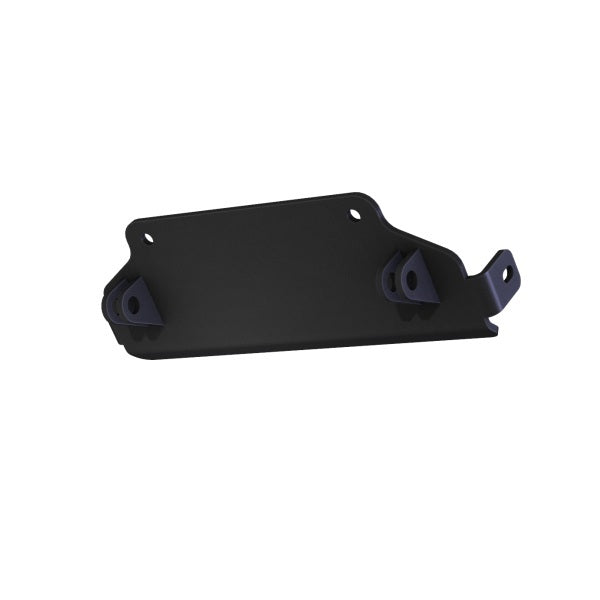

• Honda Pioneer 500 front plow mount #105615
• UTV Pro 2.0 push tube
• Installation instructions and mounting hardware
• Note: May require drilling

Winch required: A winch is needed to lift and lower the blade and is not included in this kit. Shop ATV and UTV winches.

2015-23 Honda Pioneer 500 fitment

This listing is for 2015-2023 Honda Pioneer 500 models using KFI mount #105615. Confirm your vehicle’s model, year and mount compatibility before ordering. Do not assume fitment for other Pioneer models.

Modified UTVs with larger tires, lift kits, forward A-arms or tracks may need a KFI leveling kit. Check mount clearance and installation requirements for your specific setup. Click Here for Leveling Kits

72-inch blade details

• 11-gauge steel blade with added gussets and 3/16-inch Grade 50 ribbing
• 16-inch vertical blade face; approximately 21 inches high with the included 7-inch-high, two-ply top rubber snow flap
• Adjustable blade skids with bolt-on brackets and 3-inch-diameter Grade 50 steel skid plates
• Two-sided 3/16 x 3-inch Grade 50 steel wear bar attached with Grade 8 bolts
• Metal bead-blasted and metallic-silver powder-coated finish

Push tube and mount

• Front-mount design with 30+ inches of listed lift height when operated with a winch
• Heavy-duty 1-1/2-inch, 12-gauge square steel tubing; 1/4-inch-thick Grade 50 pivot bushings; 6-inch POM rotator bushing
• Easy-pull pin blade-angle adjustment, multi-position lift bracket, six 5-degree blade-pitch adjustments and three blade-angle positions up to 25 degrees
• Black powder-coated push tube, listed by KFI as made in the USA
• Front lower mount compatible with KFI Pro 2.0 square tube system #106300

KFI lists a 2-year warranty for the blade and push tube.

Installation instructions

Use the Honda Pioneer 500 mount #105615 installation instructions supplied with the kit.

• Mount #105615 instructions
• Pro S plow blade instructions
• Pro 2.0 push tube #106300 instructions

Common questions

Which Honda Pioneer does this kit fit?

This kit is listed for 2015-2023 Honda Pioneer 500 models with mount #105615. Confirm your model year and mount compatibility before ordering.

Does this kit include a winch?

No. A separate winch is required to raise and lower the plow blade.

Will it fit a Pioneer 520, 700 or 1000?

This listing covers the 2015-2023 Pioneer 500 only. Fitment for the Pioneer 520, 700 and 1000 is not confirmed by this listing.

What if my Pioneer 500 has a lift or larger tires?

Larger tires, lift kits, forward A-arms or tracks may require a KFI leveling kit. Check clearance and mounting requirements before installation. Click Here for Leveling Kits
