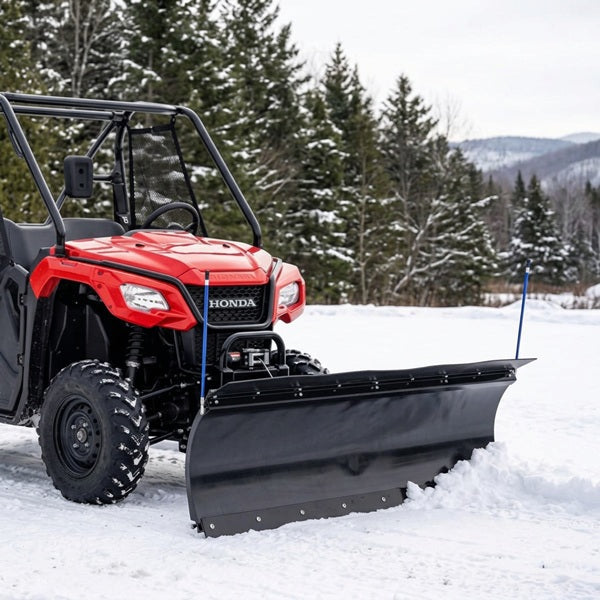

KFI Honda Pioneer 520 Pro Poly Snowplow Kit - 72 Inch Blade

The KFI Pro Poly 72-inch snowplow kit for the 2021-2026 Honda Pioneer 520 combines a flexible black poly blade face, vehicle-specific front mount #105615 and a Pro 2.0 push tube. Built for driveway and trail snow removal, the blade uses a dual-curvature face to move snow while its steel frame supports the poly face.

A separate winch is required to raise and lower the blade and is not included. Fast, free shipping.

What’s included

• One 72-inch KFI Pro Poly snowplow blade
• Honda Pioneer 520 front plow mount #105615
• UTV Pro 2.0 push tube #106300
• 7-inch-high, two-ply rubber top snow flap
• Plow markers
• Installation instructions and mounting hardware

Honda Pioneer 520 fitment

This kit is listed for 2021-2026 Honda Pioneer 520 models using KFI mount #105615. Confirm your vehicle’s model, year and mount compatibility before ordering. Fitment for the Pioneer 500, 700, 1000 or other vehicles is not established by this listing.

Installation may require drilling. Larger tires, lift kits, forward A-arms or tracks may require a KFI leveling kit. Check mount clearance and installation requirements for your setup. View KFI push tube leveling kits.

72-inch Pro Poly blade specifications

• Blade width: 72 inches
• Blade face: Flexible, heavy-duty black poly with dual curvature
• Height: 21-inch vertical blade face; approximately 27 inches with the snow flap
• Frame: 3/16-inch Grade 50 steel ribs and frame
• Steel finish: Metal bead-blasted before black powder coating
• Skids: Fully adjustable with bolt-on brackets and heavy-duty 3-inch-diameter Grade 50 steel skid plates
• Wear bar: Two-sided, 3/16 x 3-inch Grade 50 steel, attached with Grade 8 bolts
• Blade origin: Made in the USA
• Blade warranty: 2-year KFI warranty

Pro 2.0 push tube and front mount

The front-mount system connects the blade to the Pioneer 520 through mount #105615 and the Pro 2.0 square tube system #106300. The easy-pull pin adjustment lets you change blade angle for different plowing passes.

• Heavy-duty 1-1/2-inch, 12-gauge square steel tubing
• 1/4-inch-thick Grade 50 pivot bushings and a 6-inch POM rotator bushing
• Multi-position lift bracket, six 5-degree blade-pitch adjustments and three blade-angle positions up to 25 degrees
• Listed lift height of 30+ inches with winch operation; actual clearance depends on the installation
• Black powder-coated push tube, made in the USA, with a listed 2-year KFI warranty

Installation instructions

Review the mount, blade and push tube instructions before installation. A winch must be purchased separately if your vehicle does not already have a suitable one. Shop ATV and UTV winches.

• Honda Pioneer mount #105615 instructions
• Pro Poly plow blade instructions
• Pro 2.0 push tube #106300 instructions

Frequently asked questions

Which Honda Pioneer models does this snowplow kit fit?

This listing covers 2021-2026 Honda Pioneer 520 models with KFI mount #105615. Check fitment separately for other Pioneer models.

Is the Pro Poly blade steel or poly?

The blade has a flexible black poly face supported by Grade 50 steel ribs and a steel frame. It is not the metallic-silver Pro S steel-face blade.

Does the kit include the mount and push tube?

Yes. It includes the 72-inch Pro Poly blade, mount #105615 and Pro 2.0 push tube #106300, plus the listed flap, markers, instructions and mounting hardware.

Is a winch included?

No. A separate winch is required to lift and lower the plow.

Will installation require drilling?

Drilling may be required. Follow the mount #105615 instructions for your Pioneer 520.

Do lifted Pioneer 520 models need a leveling kit?

Larger tires, lift kits, forward A-arms or tracks may require a KFI leveling kit. Confirm clearance and the appropriate leveling setup before installation.
