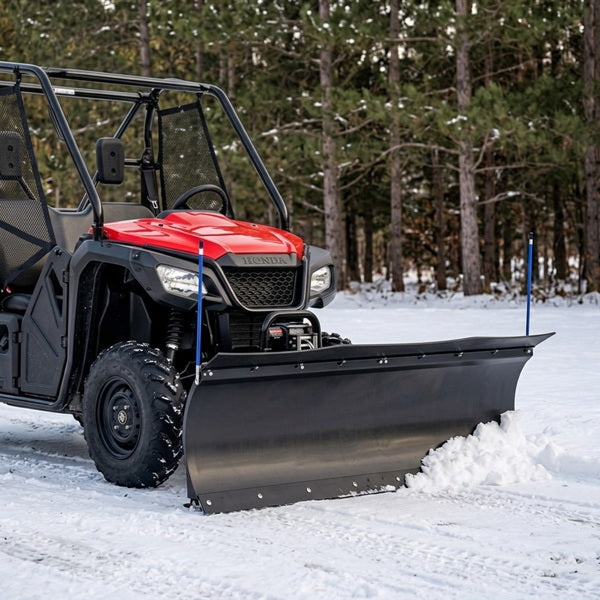

KFI Honda Pioneer 500 Pro Poly Black Snowplow Kit - 66 Inch

The KFI Pro Poly Black 66-inch snowplow kit fits the listed 2015–2023 Honda Pioneer 500 models using mount #105615. This kit includes one black poly-face blade #105866, the vehicle-specific mount and Pro 2.0 push tube #106300. A separate winch is required to raise and lower the blade.

Equip your Pioneer 500 for snowy driveway and trail cleanup. The dual-curvature blade face is designed to roll and throw snow, while adjustable skids let you set the blade’s working position.

What’s included in this snowplow kit?

• One 66-inch KFI Pro Poly Black blade #105866
• Honda Pioneer 500 front mount #105615
• KFI UTV Pro 2.0 push tube #106300
• 7-inch-high, two-ply top rubber flap and plow markers
• Mounting hardware and installation instructions

Winch and vehicle are not included. A winch is needed to lift and lower the plow. Shop ATV and UTV winches.

Honda Pioneer 500 fitment and installation

Listed fitment: Honda Pioneer 500, model years 2015–2023, with KFI mount #105615. Confirm your model year and mounting requirements before ordering. Do not assume fitment for the Pioneer 520 or other Pioneer models.

Installation may require drilling. Larger tires, lift kits, forward A-arms or tracks may require a KFI leveling kit. Review the installation instructions and check clearance for your specific vehicle. View KFI Pro 2.0 push tube leveling kits.

66-inch Pro Poly Black blade specifications

• Width: 66 inches
• Blade face: Flexible, heavy-duty black poly with dual curvature for rolling and throwing snow
• Vertical face height: 21 inches, excluding the top snow flap
• Frame and ribs: 3/16-inch Grade 50 steel
• Steel finish: Metal bead-blasted before black powder coating
• Skids: Fully adjustable with bolt-on brackets and heavy-duty 3-inch-diameter Grade 50 steel skid plates
• Wear bar: Two-sided, 3/16 x 3-inch Grade 50 steel, attached with Grade 8 bolts
• Accessories: 7-inch-high, two-ply rubber flap and plow markers included
• Blade manufacturing: Made in the USA, as stated in the supplied blade specifications
• Blade warranty: 2-year KFI warranty

Pro 2.0 push tube and mount features

• Front-mounted system with winch-operated lifting and lowering
• Heavy-duty 1-1/2-inch, 12-gauge square steel tubing
• 1/4-inch-thick Grade 50 pivot bushings and 6-inch POM rotator bushing
• Easy-pull pin blade-angle adjustment and multi-position lift bracket
• Six 5-degree blade-pitch adjustments and three blade-angle positions up to 25 degrees
• Black powder-coated push tube #106300 paired with vehicle-specific mount #105615

Installation instructions

• Honda Pioneer 500 mount #105615 instructions
• 66-inch Pro Poly blade #105866 instructions
• Pro 2.0 push tube #106300 instructions

Frequently asked questions

What Honda Pioneer does this 66-inch snowplow kit fit?

This kit is listed for 2015–2023 Honda Pioneer 500 models using KFI mount #105615. Compatibility with the Pioneer 520 or other Pioneer models is not confirmed by this listing.

Is the blade black poly or steel?

The Pro Poly blade has a flexible black poly face supported by a steel frame and ribs, plus a steel wear bar. This is the black Pro Poly blade #105866.

Does the kit include the mount and push tube?

Yes. The kit includes one 66-inch blade, Honda Pioneer 500 mount #105615 and Pro 2.0 push tube #106300, along with the listed hardware, flap, markers and instructions.

Do I need a winch to use this plow?

Yes. A separate winch is required to raise and lower the plow blade. A winch is not included.

Will it work on a lifted Pioneer 500?

Lift kits, larger tires, forward A-arms or tracks can change plow clearance and may require a KFI leveling kit. Check your setup against the installation instructions before ordering.

Does installation require drilling?

Installation may require drilling. Review the mount #105615 instructions for the mounting steps and hardware requirements.
