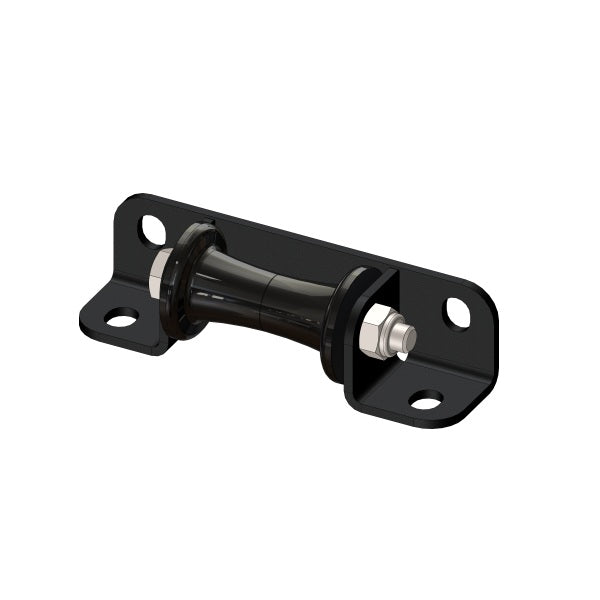

KFI Products Plow Strap Roller

The KFI 106140 plow strap roller mounts to compatible ATV and UTV push tubes to guide and center KFI Plow Strap #106100. Multiple roller positions let you adjust the setup for different applications and cable angles. Choose “No Plow Strap” for the roller and hardware, or “Add Plow Strap” to include the strap.

Included components and options

• Roller and mounting hardware are included.
• The plow strap is optional. Select “Add Plow Strap” if you need it with the roller.
• The roller is for use with KFI Plow Strap #106100 only.

Roller features and push tube compatibility

• Push-tube-mounted design.

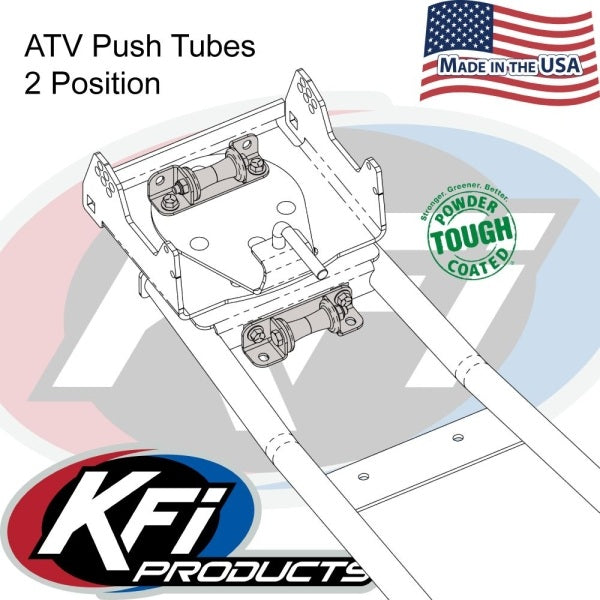

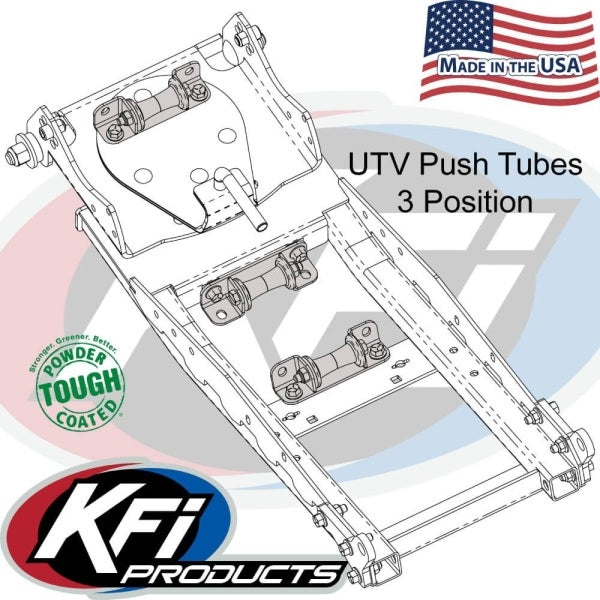

• Listed for KFI UTV Push Tubes #106300 and #105635, and ATV Push Tubes #105000.
• Multiple roller positions accommodate different applications and cable angles.
• Tapered, two-piece UHMW roller helps center the plow strap.
• Uses the POM-style roller design found in SE roller fairleads.
• KFI 12-inch Soft Strap #106470 is recommended for attaching the winch cable hook back to the machine.

Confirm your push tube part number and strap compatibility before ordering. Compatibility depends on the push tube system, not simply the vehicle make or model.

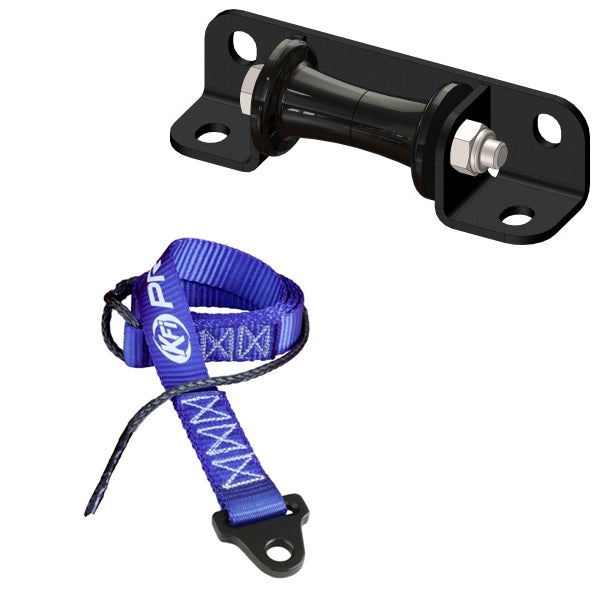

Optional KFI Plow Strap #106100

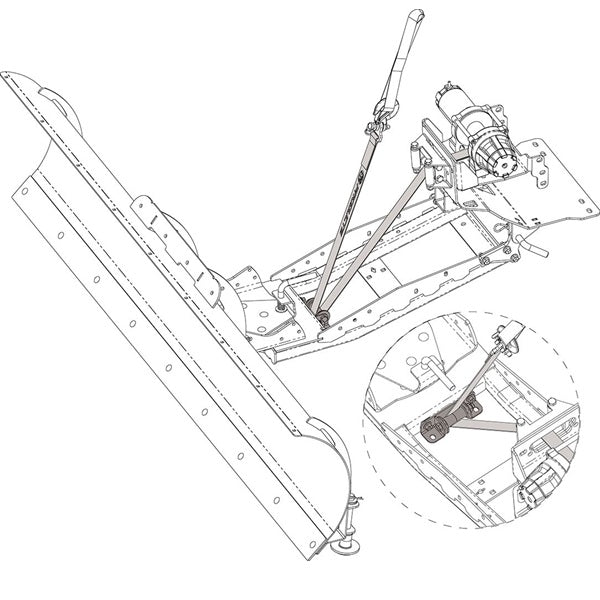

The KFI plow strap replaces the steel or synthetic winch line during plowing season to help raise and lower the blade while reducing wear on the winch, roller and fairlead. It is designed for ATV and UTV winches and helps prevent cable stacking and binding.

• Heavy-duty strap width: 1.25 inches.
• Synthetic attachment line: 3/16 inch.
• Overall length: 102 inches.
• For standard or wide winches.
• Uses your existing winch hook and offers multiple spool attachment options.
• Recommended for use with a roller fairlead.
• Designed to maximize winch pulling capacity and help protect the winch from hits and impacts.
• Listed break strength: 3,200 pounds. This is a break-strength specification, not a working-load rating.
• Uses Plow Strap Roller #106140 where a roller is needed.

Installation and safe operation

Mount and adjust the roller according to the KFI 106140 installation instructions. Check the cable angle and lifting geometry before operating the plow. Call us if you have questions about where to attach the hook to your tube system for optimal lifting.

Warnings:

1. Do not plow with the strap under tension.
2. Do not raise the plow while the plow is in the snow.
3. Make sure the cable angle is correct. The setup must lift the plow, not pull against it.

The plow strap includes a winch-protection safety feature: under excessive force, the strap threads are designed to give way to help protect the winch.

Frequently asked questions

Is the plow strap included with the roller?

Only when you select “Add Plow Strap.” The “No Plow Strap” option includes the roller and hardware without the optional strap.

Which plow strap works with this roller?

This roller is for KFI Plow Strap #106100 only.

Which KFI push tubes are listed as compatible?

KFI UTV Push Tubes #106300 and #105635, and ATV Push Tubes #105000. Check your push tube part number before ordering.

Can I use my existing winch hook with the optional strap?

Yes. The optional KFI plow strap uses your existing winch hook and has multiple spool attachment options.
