KFI ACT203 12V UTV Plow Actuator with Optional Harness
The KFI Products ACT203 is a 12-volt electric-over-hydraulic actuator for KFI UTV push tube systems #106300 and #105635. Choose the actuator with no harness, add a dash mount harness, or add a hand remote harness for your plow control setup. This listing is not a complete snowplow kit.
Choose Your Actuator and Harness Configuration
No Harness — ACT203
Select No Harness for the ACT203 actuator without an added wire harness. This option does not include the dash mount or hand remote harness kit. Confirm your wiring and control requirements before ordering.

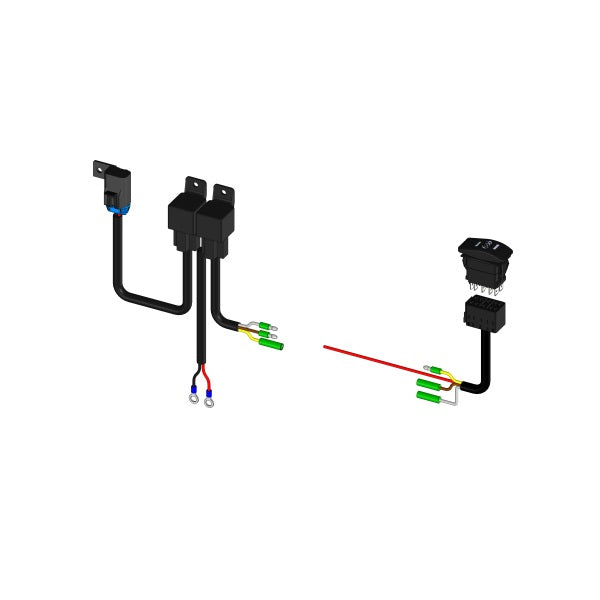

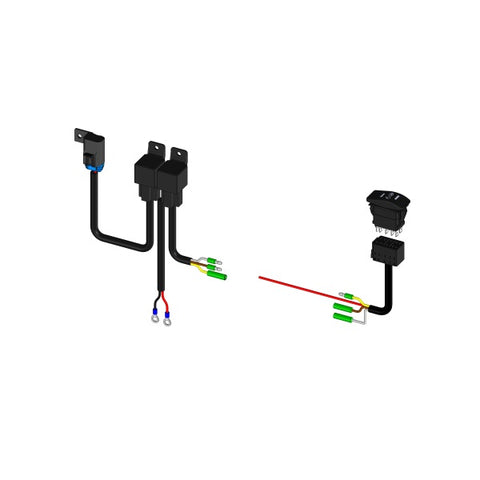

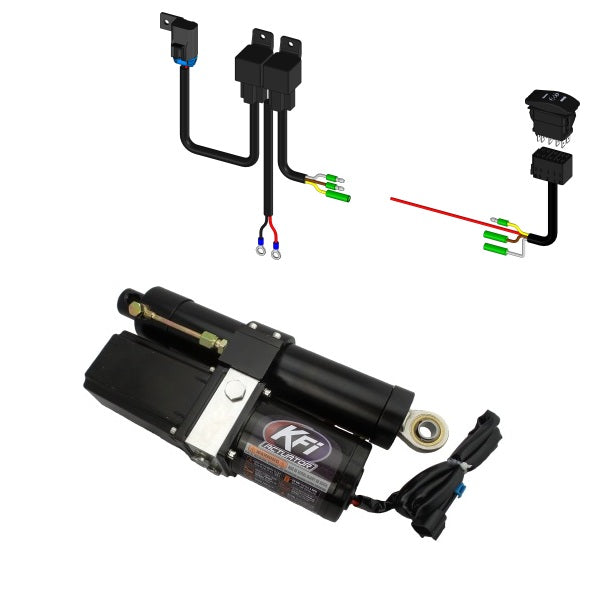

Add Dash Mount Harness — ACT203-106940
Select this option for the ACT203 actuator with the dash mount wiring option. The actuator plow switch kit is designed for the ACT203 and includes a wiring kit with a Carling Technologies two-way dash rocker switch illuminated by a blue LED.

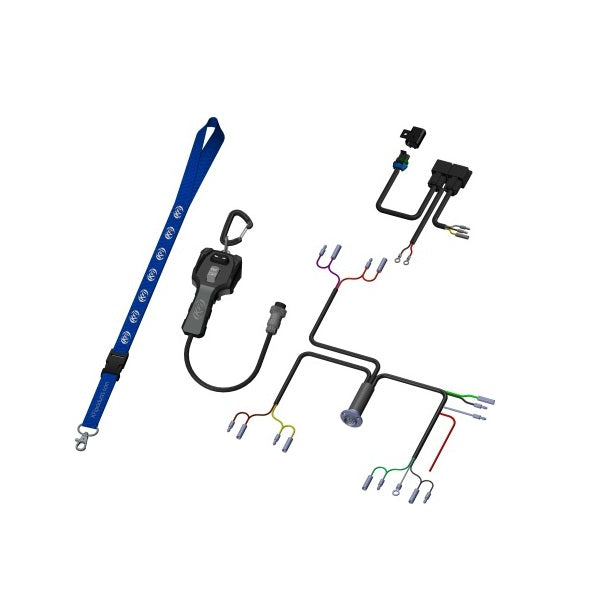

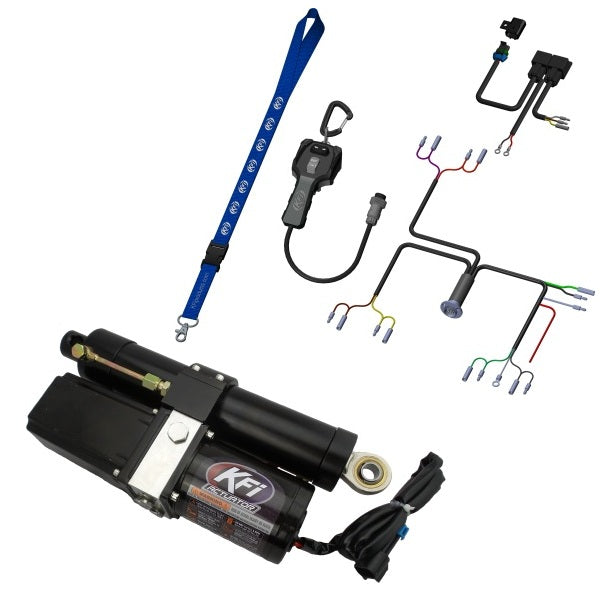

Add Hand Remote Harness — ACT203-106950
Select this option for the ACT203 actuator with the hand remote control option for KFI UTV straight blades using a single hydraulic actuator. The control kit includes ACT-HR, ACT-HR-HAR and ACT-HAR. It controls the winch to raise and lower the plow and a single hydraulic actuator to angle the straight blade.
- Backlit KFI logo illuminates blue when plugged in.
- Threaded connection helps prevent accidental disconnection.
- Lanyard and carabiner included with the hand remote kit.
- Hand remote kit can be used in conjunction with ACT-BLDRS-K.

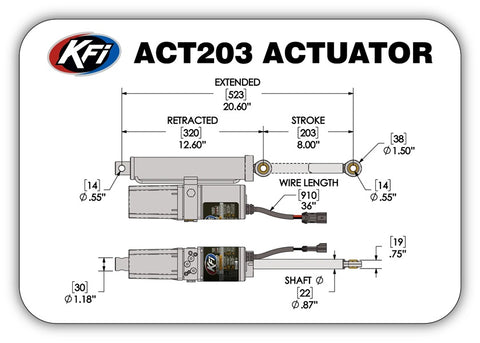

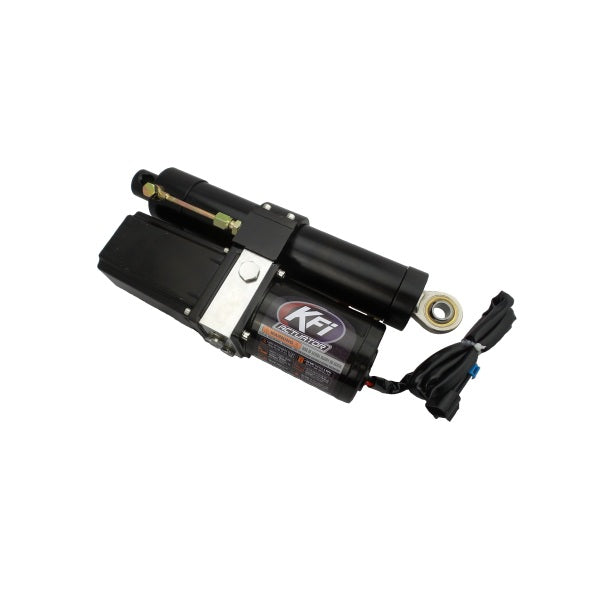

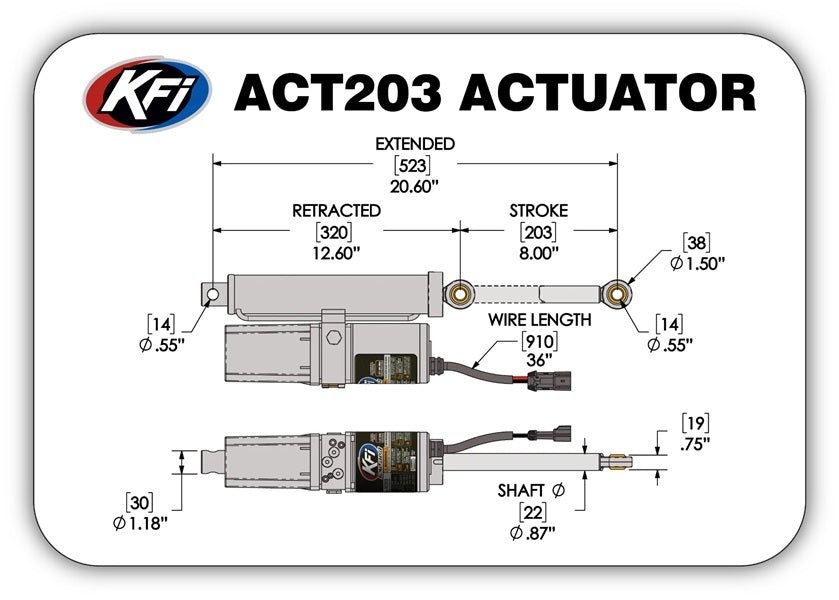

Actuator Specifications
- Brand: KFI Products
- Actuator part number: ACT203
- Type: electric-over-hydraulic cylinder
- Electrical supply: 12 volt
- Connector: Metri-Pak 280 2-pin series male end
- Compatible KFI UTV push tubes: #106300 and #105635
- Warranty: 1-year KFI limited warranty
What's Included and What Is Sold Separately?
Each configuration includes the ACT203 actuator. No Harness (SKU ACT203) does not include an added wire harness. Add Dash Mount Harness (SKU ACT203-106940) includes the actuator with the dash mount harness option. Add Hand Remote Harness (SKU ACT203-106950) includes the actuator with the hand remote harness option. Choose the required configuration before adding to cart.
The push tube system and bracket kit are sold separately; this is not a complete snowplow system.
Fitment and Installation
Compatibility depends on your KFI push tube system, not the vehicle make or model alone. Verify that your setup uses KFI push tubes #106300 or #105635. Review the actuator and applicable control kit instructions to confirm mounting requirements, wiring requirements and additional installation parts before ordering.
KFI ACT203 actuator installation instructions
KFI 106940 dash mount kit installation instructions
KFI 106950 hand remote kit installation instructions
Frequently Asked Questions
Can I buy the KFI ACT203 actuator without a harness?
Yes. Choose No Harness (SKU ACT203) for the actuator without an added wire harness. The dash mount and hand remote harness kits are not included with this option.
Which push tubes work with the KFI ACT203?
The ACT203 is designed for KFI UTV push tubes #106300 and #105635. Confirm the push tube part number on your plow system before ordering.
What is the difference between the three configurations?
No Harness provides the actuator without an added wire harness. Add Dash Mount Harness pairs the actuator with a blue LED-illuminated two-way dash rocker switch and wiring kit. Add Hand Remote Harness pairs the actuator with handheld control of winch raising and lowering and single-actuator straight-blade angling.
Is a wire harness included?
Only when you select Add Dash Mount Harness (SKU ACT203-106940) or Add Hand Remote Harness (SKU ACT203-106950). The No Harness option (SKU ACT203) does not include an added wire harness.
Is this a complete UTV snowplow kit?
No. This listing is for the ACT203 actuator, with or without an added harness depending on your selection. The push tube system and bracket kit are sold separately.
Is the ACT203 electric or hydraulic?
It is an electric-over-hydraulic cylinder powered by a 12-volt electrical supply and uses a Metri-Pak 280 2-pin series male-end connector.
What warranty comes with the actuator?
The ACT203 has a 1-year KFI limited warranty.
