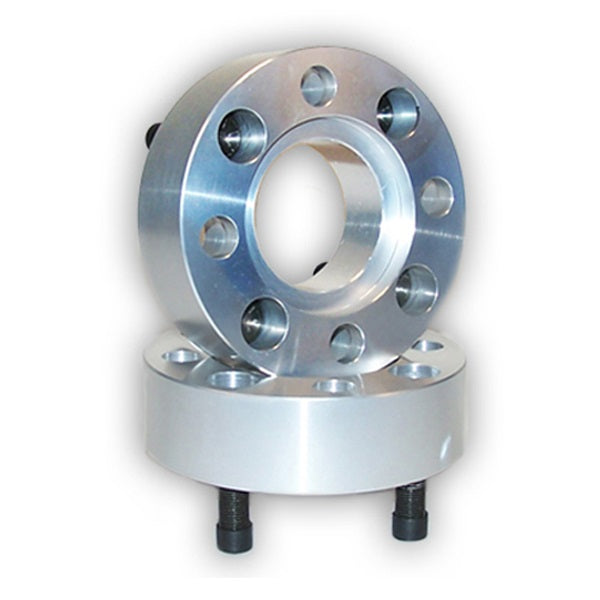

Wide Trac CFMOTO UFORCE 500 Wheel Spacers (2015-18)

High Lifter Wide Trac Aluminum Wheel Spacers for CFMOTO UFORCE 500 Models are designed to move ATV UTV wheels slightly out from the hubs and shocks. High Lifter's Wide Tracs are machined from aircraft grade 6061 billet aluminum and use grade 8 studs. No OEM studs are required to be removed from the ATV and stud extenders are not used.

Note: Wheel Spacers are sold in Pairs you will need 1 Pair to do 2 wheels and 2 Pairs to do 4 wheels.

Fits:
2015-18 UFORCE 500 HO EPS - 10mm x 1.25 Studs

These are a 4/110 Bolt Pattern with 10mmx1.25 Studs

There are several major benefits provided by Wide Tracs:
1. They extend wheel width for greater stability and increased safety. Riders of tall ATVs will feel much more comfortable on side hills with the wider base provided by Wide Tracs.

2. They provide mud tires a fresh "bite" at the side of ruts instead of the ATV simply driving down the deepest part of the center of the ruts where previous riders have been. So, the problem of getting stuck by being "high centered" is reduced.

3. They allow the installation of larger, aftermarket tires without rubbing shocks, struts or exhaust systems.

Wide Tracs bolt to existing studs and the wheel is then bolted to the grade 8 Wide Trac Stud furnished. This design is the strongest available to ATVs and are comparable to automotive grade wheel spacers.
