SuperATV Can-Am Defender HD5 Atlas Pro BFT Suspension Kit

SuperATV Atlas Pro BFT Suspension Kit for Can-Am Defender HD5 (2017+)

The SuperATV Atlas Pro BFT Suspension Kit lets you run massive 34" tires on your Can-Am Defender HD5 with only a 2" lift — keeping your center of gravity low without a bulky lift kit. Engineered with 2" forward-offset A-arms made from 1.5" x .138" wall steel DOM tubing, this kit delivers unmatched strength, clearance, and durability for serious off-road riding.

📄 Download Installation Instructions

Key Features

• Fits 34" tires with minimal lift
• 2" forward offset Atlas Pro A-arms

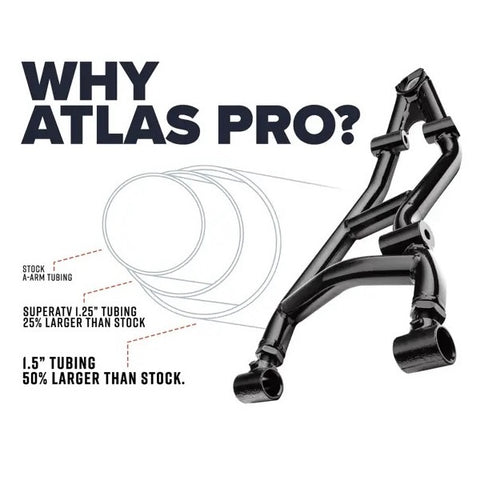

• 1.5" x .138" wall steel DOM tubing — 0.5" larger than stock
• 2" of lift via shock brackets and spring spacers
• 1.5" additional ground clearance
• Full camber adjustability
• Pivot blocks pre-adjusted to factory length
• Reinforced shock mounts
• Includes all 4 front A-arms
• Compatible with OEM or aftermarket ball joints
• UV-resistant powder coat finish
• Lifetime warranty

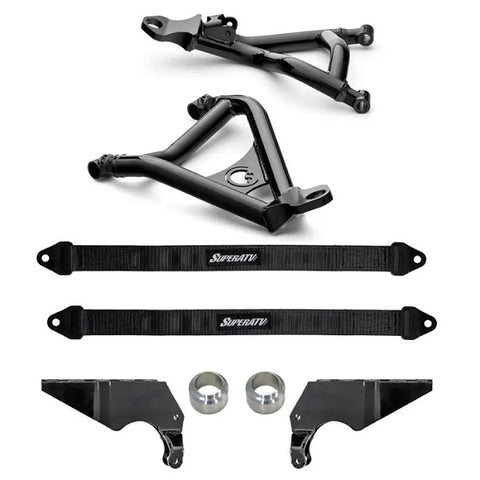

Kit Includes

• Atlas Pro Upper and Lower Front A-Arms
• Steering stop kit
• 17" Limit straps (not needed with Rhino 2.0 Axles)
• Spring spacers (billet aluminum)
• Shock brackets (CNC laser-cut steel)
• Shock bump stop (required for 34" tires)

Note: You must reuse your stock ball joints if you do not select the Preinstalled Ball Joints option.

Fitment

• Can-Am Defender HD5 — 2017 and newer
• Can-Am Defender HD5 DPS — 2017–2019

Frequently Asked Questions

What size tires can I run with the SuperATV Atlas Pro BFT Suspension Kit?

This kit is designed to fit 34" tires on the Can-Am Defender HD5 with only a 2" lift, keeping your center of gravity lower than a traditional big lift kit.

Do I need new ball joints with this kit?

No — you can reuse your stock OEM ball joints. However, you can select a Preinstalled Ball Joints option (Standard Duty, Heavy Duty 4340, Super Duty 300M, or Keller Performance) at checkout for a complete, ready-to-install solution.

What is BFT?

BFT stands for Big F***ing Tires — SuperATV's engineering approach to maximizing tire clearance with minimal lift by using 2" forward-offset A-arms and precision-engineered suspension geometry.

Does this kit come with a warranty?

Yes. The SuperATV Atlas Pro BFT Suspension Kit is backed by a lifetime warranty.

Is this compatible with aftermarket axles?

Yes. The kit is compatible with both OEM and aftermarket axles. If you are running Rhino 2.0 Axles, the included 17" limit straps are not required.

Why Choose the Atlas Pro BFT Kit?

SuperATV's Atlas Pro A-arms are the strongest they've ever built. The 1.5" DOM steel tubing outperforms stock and competing kits, while CNC laser-cut steel brackets and billet aluminum spring spacers ensure precision fitment. The UV-resistant powder coat protects against rust and corrosion on the trail. Whether you're charging through mud holes or crawling over rocks, this kit is built to dominate.
