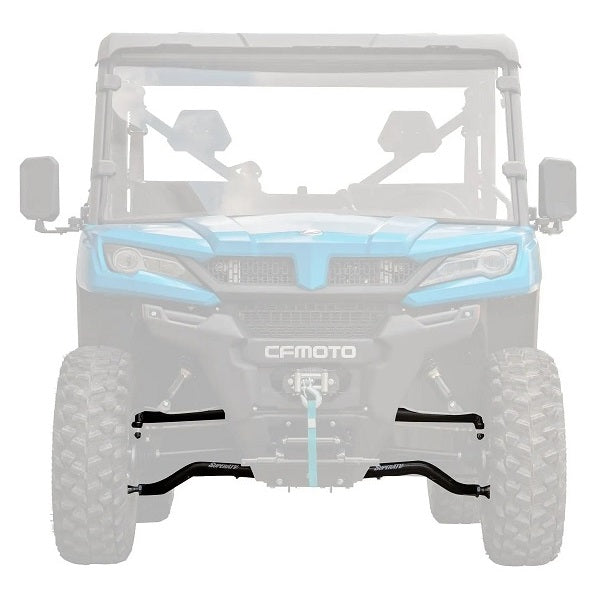

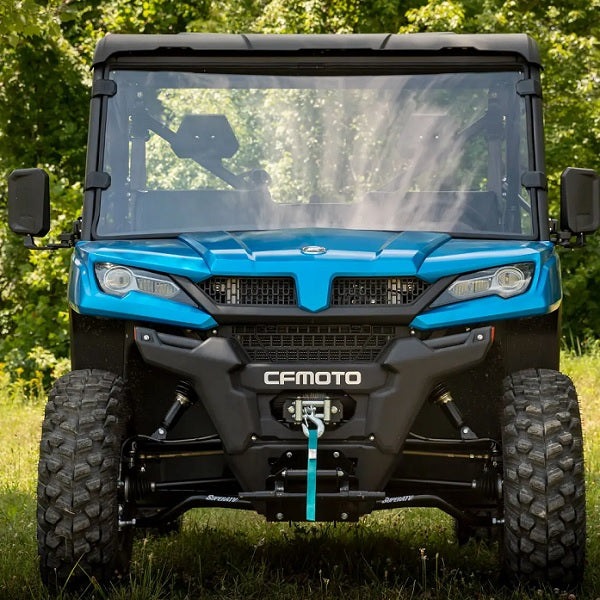

SuperATV high-clearance front A-arms give your CFMOTO UFORCE 1000 or UFORCE 1000 XL a 1.5-inch forward offset, full camber adjustment and room for up to 30-inch tires without a lift kit. The longer wheelbase improves stability over hills and large obstacles, while the dual-bend design raises the arms to help clear rocks and other trail obstacles.
Fitment and model selection
- CFMOTO UFORCE 1000, 2019–2021: Select “1000 - 2019-2021.”
- CFMOTO UFORCE 1000, 2022+ built after March 2022: Select “1000 - 2022+ (Built After March 2022).”
- CFMOTO UFORCE 1000 XL, 2022+: Select “XL 1000 - 2022+.”
Check the build date on 2022 two-seat models before ordering. If your 2022 UFORCE 1000 was built in or before March 2022, confirm which option you need before purchasing.
Features and specifications
- 1.5-inch forward offset increases wheelbase and tire clearance.
- Fits up to 30-inch tires without a lift kit.

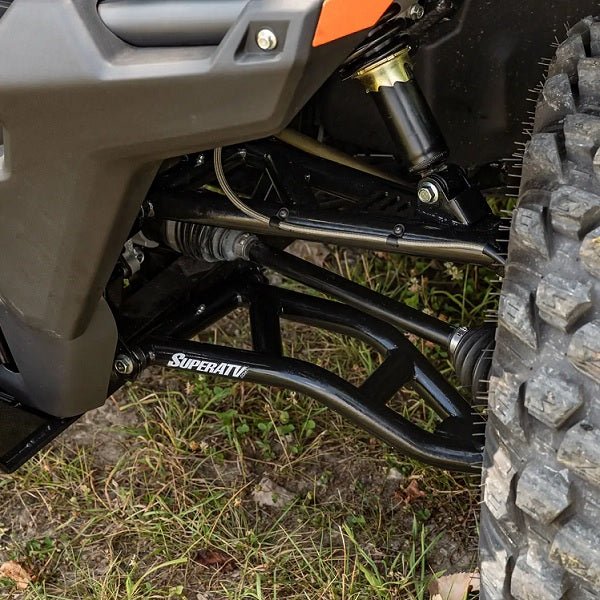

- High-clearance dual-bend design helps reduce hang-ups on trail obstacles.
- 1.25-inch-diameter tubing is 25% larger than stock for stronger control arms.

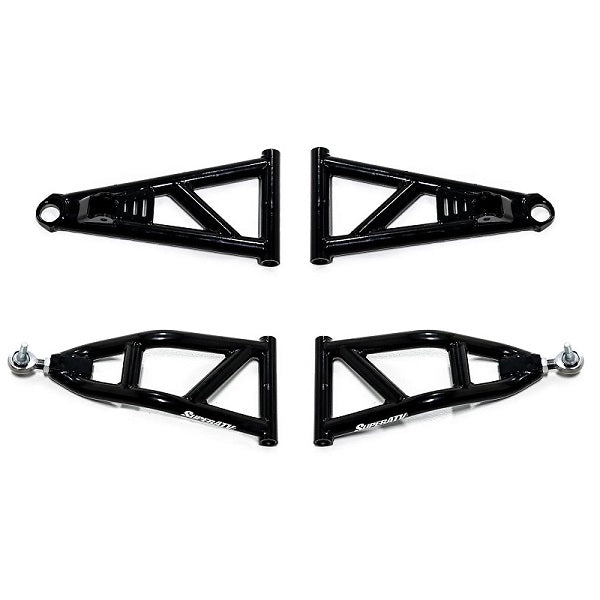

- Heim-style lower uniball and stud design provides full camber adjustability.
- Lower arms include 4130 chromoly uniballs and studs.
- Studs are not necked down and measure 17.9 mm at the narrowest point, compared with 12.7 mm for the OEM ball-joint stud. SuperATV describes the stud as 140% larger than OEM.
- Heat-treated uniball materials support strength and durability.
- UV-resistant powder-coat finish.
- Uses stock A-arm bushings.
- Designed for easy installation and backed by a lifetime warranty.
Bushings and ball-joint options
Bushings are not included. Reuse your stock bushings or order a compatible SuperATV UFORCE 1000 A-arm bushing kit.
Choose “No Ball Joints” or “Add Keller Performance” under the preinstalled ball-joint option. The lower-arm uniballs and studs are listed above separately from this selectable option.
Optional Keller Performance ball joints
Keller ball joints use a two-piece, threaded design that eliminates the snap ring and helps resist pullout. A chromoly steel stud and tool-steel body are designed for larger machines, bigger tires and heavier riding. They are greaseable and rebuildable for ongoing maintenance.
Camber adjustment for your setup
The adjustable lower heim-style joints let you tailor camber to your suspension setup. When adding a lift, new shocks or larger tires, camber adjustment helps you maintain the ride quality you want and address alignment-related premature wear.
Installation instructions
Frequently asked questions
How much forward offset do these A-arms add?
These front A-arms add 1.5 inches of forward offset, increasing the wheelbase for added stability and tire clearance.
What size tires can I run without a lift kit?
SuperATV lists clearance for up to 30-inch tires without a lift kit.
Are A-arm bushings included?
No. Use your stock bushings or purchase a compatible SuperATV bushing kit separately.
Do these fit the UFORCE 1000 XL?
A 2022+ UFORCE 1000 XL option is available. Select the XL model option rather than the standard UFORCE 1000 option.
Can I adjust the camber?
Yes. The lower heim-style uniball and stud design provides full camber adjustability.
