SuperATV Can-Am Maverick X3 6" Lift Kit (64 Inch Models)

SuperATV SKU: LK-CA-X3-TU-R2-02
Regular price


Select X3 Model
Select Models Year
Ready to ship - 7 left

With a SuperATV 6 Inch Lift Kit for Can-Am Maverick X3 64 Inch Wide Models get lifted and get wild! The extra 6” of ground clearance gives room for larger tires, up to 38 inches, you’ll be turning heads and tearing through bounty holes! The heavy-duty boxed trailing arms and radius arms are made with high-strength, 1/8” steel plating that makes them the more capable in the most extreme riding conditions.

Store Wide Sale! Save 5% to 15% at Checkout on 1000's of products.

Fits 64 Inch:
Maverick X3 900 : 2018
Maverick X3 Turbo : 2017+
Maverick X3 Turbo R DS : 2017+
Maverick X3 Turbo XRC : 2018+
Maverick X3 Turbo XMR : 2018+
Maverick X3 Turbo RR XDS : 2020+
Maverick X3 Max Turbo : 2017+
Maverick X3 Max Turbo R DS : 2017+
Maverick X3 Max Turbo RR XDS : 2020+

Does NOT fit X RS or 72" models
1" wheel spacers required when running stock wheels
Sway bar and links will not be re-installed with lift

Click Here for Installation Instructions

True 6” of lift
20” total ground clearance (14” stock)
Clearance for up to 38” tires (up from 30” stock)
6” wider stance for increased stability (on 64" models)
Compatible with OEM and SuperATV heavy-duty ball joints
Includes 4 SuperATV Rhino 2.0 Axles
Preadjusted pivot blocks give you perfect camber out of the box
Powder coated for increased durability and UV resistant
Backed by a Lifetime Warranty!

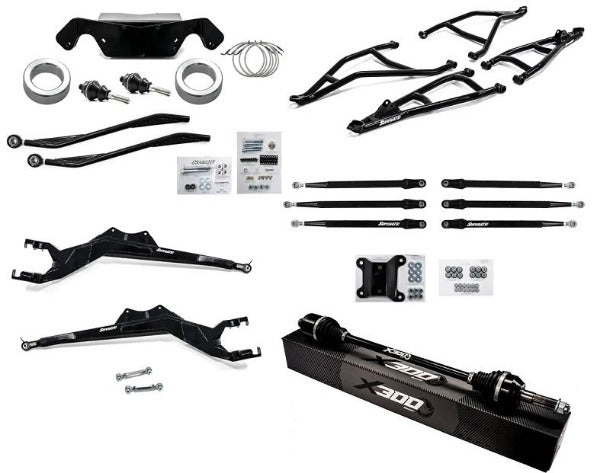

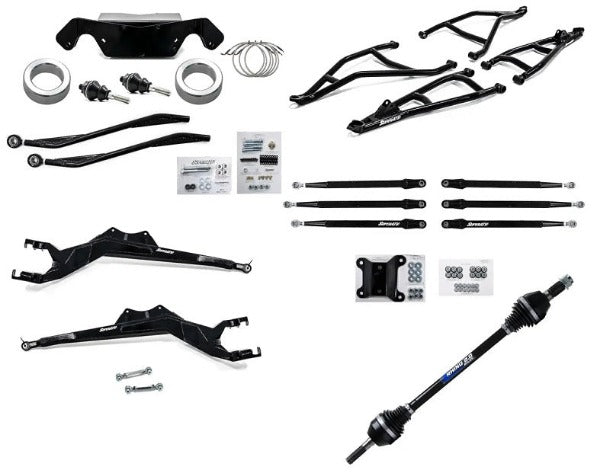

Front high-clearance A-arms (chromoly)
Rear trailing arms
Sway bar links (billet aluminum)
Rear radius arms
Shock brackets and spacers
4 SuperATV axles (Rhino 2.0 or X300)
Heavy-duty tie rod kit
Extended brake lines
All hardware and installation instructions

Rhino 2.0 Features:
100% stronger than stock
Utilizes the Rhino 2.0 Formula
Size: Massive 4mm increase in size!
Heat Treatment
Constructed of 4340 chromoly steel and finished with a proprietary heat treatment
Industry leading 18-month warranty
Field and lab tested for extreme strength and endurance
CAD drawn for expert precision

A-arms are made with 1-1/4” chromoly steel tubing for superior strength and performance. The design and tube bends give them 1-1/2” of additional high clearance. Plus, they come with preadjusted pivot blocks to give you perfect camber right out of the box.

The Maverick X3 64” models really know how to throw down hard. That’s why all suspension components including tie rods, A-arms, trailing arms, radius arms, and lift brackets are backed by a Lifetime Warranty. Ride your UTV where you want the way you want, SuperATV’s got your back.
